Monado Runtime源码结构分析

源码地址

monado的源码下载地址：https://gitlab.freedesktop.org/monado/monado

Monado source tree

ReadMe.md的部分已经有阐释了整个工程的目录概要：

• src/xrt/include - headers that define the internal interfaces of Monado.
• src/xrt/compositor - code for doing distortion and driving the display hardware of a device.
• src/xrt/auxiliary - utilities and other larger components.
• src/xrt/drivers - hardware drivers.
• src/xrt/state_trackers/oxr - OpenXR API implementation.
• src/xrt/targets - glue code and build logic to produce final binaries.
• src/external - a small collection of external code and headers.

gradle for Android

参考根目录下的settings.gradle文件，可以看出整个工程其实是包含了4个部分的：

• rootProject.name = ‘monado’
• include ':src:xrt:auxiliary:android'
• include ':src:xrt:ipc:android'
• include ':src:xrt:targets:android_common'
• include ':src:xrt:targets:openxr_android'

这个是我们非常熟悉的Android工程的结构了，根据以往的经验，我们需要从com.android.application的工程入手进行分析。

openxr_android

整个工程编译apk的主module是openxr_android，因此先分析openxr_android/build.gradle：

build.gradle

......
plugins {
    id 'com.android.application'
	......
}
......
android {
	......
    defaultConfig {
        applicationId 'org.freedesktop.monado.openxr_runtime'
		......
        externalNativeBuild {
            cmake {
                arguments "-DEIGEN3_INCLUDE_DIR=${project.eigenIncludeDir}",
                    "-DANDROID_PLATFORM=26",
                    "-DANDROID_STL=c++_shared",
                    "-DANDROID_ARM_NEON=TRUE"
            }
            if (project.pythonBinary != null) {
                println "Path to Python 3 explicitly specified: ${project.pythonBinary}"
                cmake.arguments "-DPYTHON_EXECUTABLE=${project.pythonBinary}"
            }
        }
		......
    }

	......

    externalNativeBuild {
        cmake {
            path "${rootDir}/CMakeLists.txt"
        }
    }
	......

    flavorDimensions 'deployment'
    productFlavors {
        inProcess {
            dimension 'deployment'
            applicationIdSuffix '.in_process'
            externalNativeBuild.cmake.arguments += "-DXRT_FEATURE_SERVICE=OFF"
            externalNativeBuild.cmake.targets "openxr_monado"

            resValue "string", "app_name", "Monado XR"
        }
        outOfProcess {
            dimension 'deployment'
            applicationIdSuffix '.out_of_process'
            externalNativeBuild.cmake.arguments += "-DXRT_FEATURE_SERVICE=ON"
            externalNativeBuild.cmake.targets "openxr_monado", "monado-service"
            resValue "string", "app_name", "Monado XR (Out-of-Proc)"
        }
    }
	......
}
......
dependencies {
    outOfProcessImplementation project(':src:xrt:ipc:android')
    implementation project(':src:xrt:auxiliary:android')
    implementation project(':src:xrt:targets:android_common')
    ......
}

在这里有三个关键点：

1. 整个工程的CMakeLists.txt是"${rootDir}/CMakeLists.txt"，也即monado/CMakeLists.txt

2. 区分了productFlavors，包含了两个选项：inProcess和outOfProcess

   在inProcess的Flavors下，会定义XRT_FEATURE_SERVICE=OFF

   在outOfProcess的Flavors下，会定义XRT_FEATURE_SERVICE=ON

3. 仅在outOfProcess的Flavors下会引用到:src:xrt:ipc:android

   outOfProcessImplementation project(':src:xrt:ipc:android')

因此，如果只是编译inProcess的模式，那么就不会包含src/xrt/ipc/android目录下的相关代码了，这边以inProcess为例进行分析。

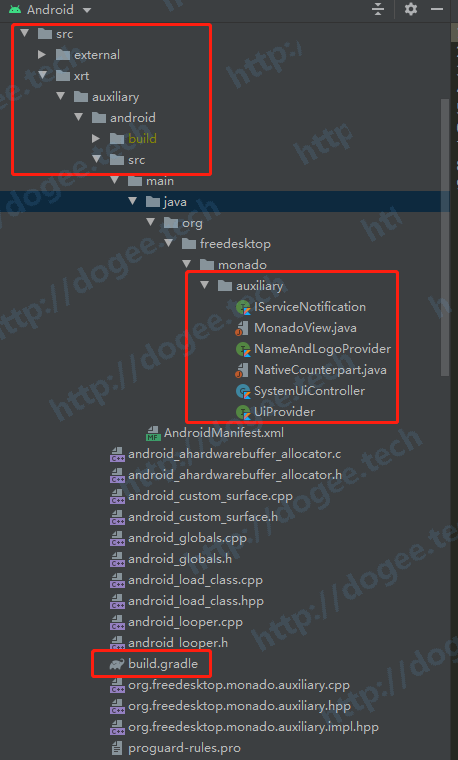

auxiliary:android

auxiliary的翻译是辅助的，这个目录的gradle中并没有包含太多的信息，也没有包含CMakeLists的部分，因此只是一个纯android工程而已。

其中的具体作用以后再分析。

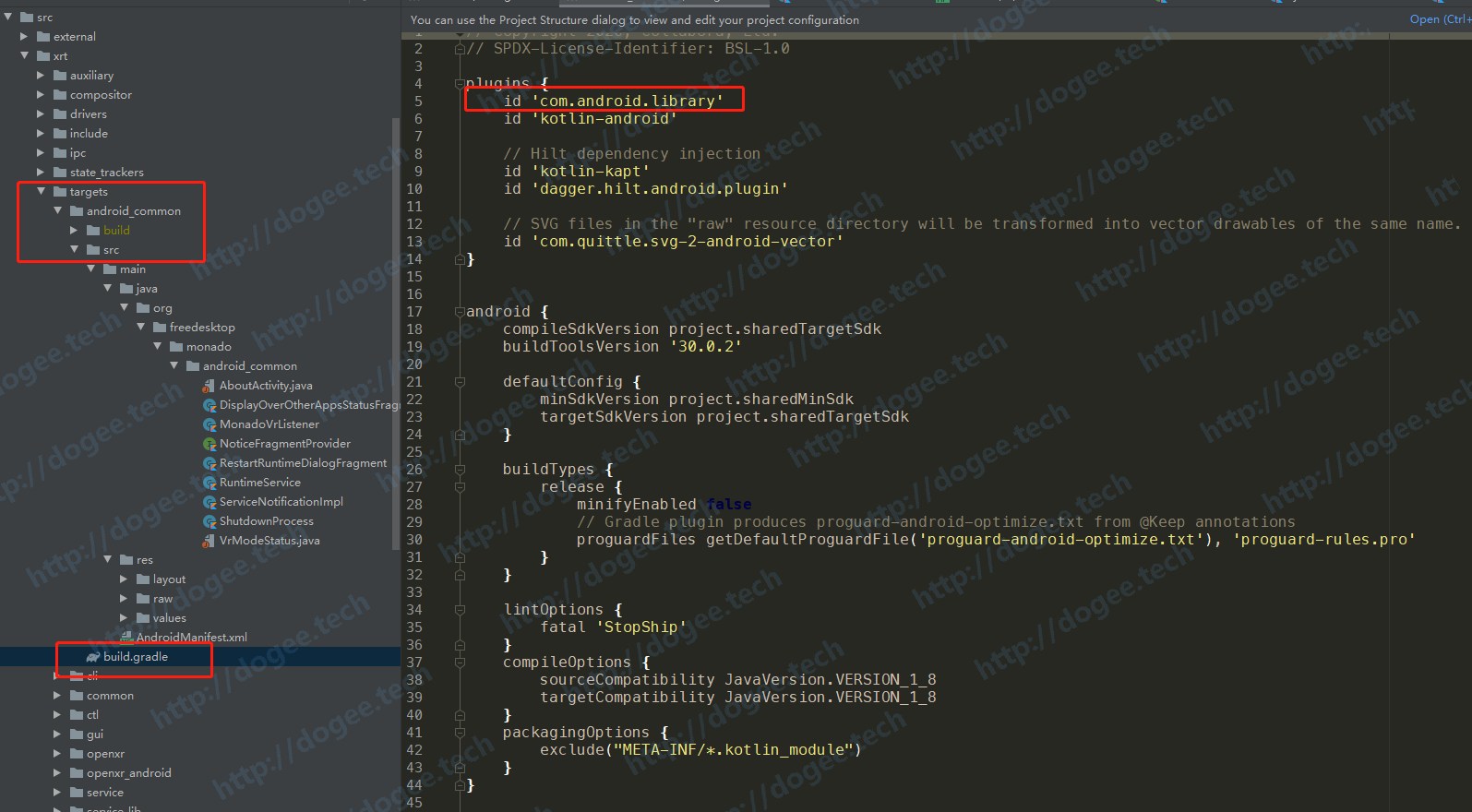

targets:android_common

这个模块的部分跟auxiliary:android非常类似，在build.gradle中也没有CMakeLists，也是一个普通的android library模块。

monado

根目录下的CMakeLists文件是整个monado runtime so的起始点，文件的部分有点长，一共有将近500行，逐段分析一下。

在分析之前需要记得一点，由于我们是通过gradle进行编译的inProcess，在CMakeLists.txt之外有额外给出了一个参数：XRT_FEATURE_SERVICE=OFF。

• 最早的60行大部分内容都是在定义环境变量，诸如指定CMake版本，C++版本

  # Copyright 2018-2021, Collabora, Ltd.
  # SPDX-License-Identifier: BSL-1.0

  cmake_minimum_required(VERSION 3.10.2)
  project(XRT VERSION 21.0.0)

  # CMake 3.11 introduced CMP0072 - Prefer GLVND
  if(POLICY CMP0072)
  	cmake_policy(SET CMP0072 NEW)
  endif()

  option(
  	XRT_OPENXR_INSTALL_ABSOLUTE_RUNTIME_PATH
  	"Use the absolute path to the runtime in the installed manifest, rather than a bare filename."
  	ON
  	)
  option(XRT_OPENXR_INSTALL_ACTIVE_RUNTIME "Make Monado the default OpenXR runtime on install" ON)

  # We use C++17
  set(CMAKE_CXX_STANDARD 17)
  set(CMAKE_CXX_STANDARD_REQUIRED ON)

  # So that clangd/Intellisense/Sourcetrail know how to parse our code.
  set(CMAKE_EXPORT_COMPILE_COMMANDS ON)

  ###
  # Dependencies
  ###
  list(APPEND CMAKE_MODULE_PATH "${CMAKE_CURRENT_SOURCE_DIR}/cmake")
  list(APPEND CMAKE_MODULE_PATH "${CMAKE_CURRENT_SOURCE_DIR}/cmake/sanitizers")
  include(CMakeDependentOption)
  include(SPIR-V)
  include(GNUInstallDirs)
  if(NOT GIT_DESC)
  	include(GetGitRevisionDescription)
  	git_describe(GIT_DESC "--always")
  endif()
  if(NOT ${CMAKE_VERSION} VERSION_LESS 3.9)
  	include(CheckIPOSupported)
  	check_ipo_supported(RESULT HAS_IPO)
  endif()

  # Android SDK doesn't look for 3.8 and 3.9, which is what new distros ship with.
  set(Python_ADDITIONAL_VERSIONS 3.8 3.9)
  if(NOT CMAKE_VERSION VERSION_LESS 3.12)
  	find_package(Python3 REQUIRED Interpreter)
  	set(PYTHON_EXECUTABLE Python3::Interpreter)
  else()
  	find_program(PYTHON_EXECUTABLE python3)
  	if(PYTHON_EXECUTABLE MATCHES "WindowsApps")
  		# If you hit this error, you will have to install Python 3 or try harder to tell CMake where it is.
  		message(
  			FATAL_ERROR
  				"Found WindowsApps alias for Python. Make sure Python3 is installed, then choose 'Manage App Execution Aliases' in Start and disable the aliases for Python."
  			)
  	endif()
  endif()

• 第二个部分是一些项目中会使用到的依赖库

  find_package(Eigen3 3 REQUIRED)
  find_package(Vulkan MODULE)
  find_package(EGL MODULE)
  find_package(HIDAPI MODULE)
  find_package(OpenHMD MODULE)
  find_package(
  	OpenCV
  	COMPONENTS
  		core
  		calib3d
  		highgui
  		imgproc
  		imgcodecs
  		features2d
  		video
  		CONFIG
  	)
  find_package(Libusb1 MODULE)
  find_package(JPEG MODULE)
  find_package(realsense2 CONFIG)
  find_package(depthai CONFIG)
  find_package(SDL2 CONFIG)
  find_package(ZLIB MODULE)
  find_package(cJSON MODULE)
  find_package(Systemd MODULE)
  find_package(OpenGLES MODULE COMPONENTS V3)
  find_package(LeapV2 MODULE)
  find_package(ONNXRuntime MODULE)
  find_package(Percetto MODULE)
  if(NOT ANDROID)
  	find_package(PkgConfig MODULE)
  endif()

  #https://github.com/arsenm/sanitizers-cmake
  find_package(Sanitizers MODULE)

  add_library(xrt-pthreads INTERFACE)
  if(WIN32)
  	find_package(pthreads_windows REQUIRED)
  	target_link_libraries(xrt-pthreads INTERFACE PThreads4W::PThreads4W_CXXEXC)
  else()
  	set(CMAKE_THREAD_PREFER_PTHREAD ON)
  	find_package(Threads)
  	target_link_libraries(xrt-pthreads INTERFACE Threads::Threads)
  endif()

  if(PKGCONFIG_FOUND AND NOT ANDROID)
  	# @TODO Turn into a find_package LIBUVC file.
  	pkg_check_modules(LIBUVC libuvc)

  	# @TODO Turn into a find_package FFMPEG file.
  	pkg_check_modules(FFMPEG libavcodec)
  endif()

  find_package(OpenGL)
  set(OPENGL_WITHOUT_GLX_FOUND ${OPENGL_FOUND})
  if(CMAKE_SYSTEM_NAME STREQUAL "Linux")
  	set(XRT_HAVE_LINUX YES)
  	# Compositor backend
  	find_package(X11)

  	find_package(udev REQUIRED)
  	set(XRT_HAVE_V4L2 TRUE)
  	if(PKGCONFIG_FOUND)
  		pkg_check_modules(XRANDR xrandr)

  		pkg_check_modules(XCB xcb xcb-randr x11-xcb)

  		pkg_search_module(WAYLAND wayland-client)
  		pkg_search_module(WAYLAND_SCANNER wayland-scanner)
  		pkg_search_module(WAYLAND_PROTOCOLS wayland-protocols)
  		pkg_search_module(LIBDRM IMPORTED_TARGET libdrm)
  	endif()
  	find_package(OpenGL COMPONENTS GLX)
  	pkg_search_module(DBUS dbus-1)
  	pkg_search_module(LIBBSD libbsd)

  	pkg_check_modules(GST gstreamer-1.0 gstreamer-app-1.0 gstreamer-video-1.0)

  	pkg_check_modules(SURVIVE IMPORTED_TARGET survive)
  endif()

  find_library(RT_LIBRARY rt)

  if(ANDROID)
  	find_library(ANDROID_LIBRARY android)
  	find_library(ANDROID_LOG_LIBRARY log)
  endif()

  # Find a external SLAM implementation
  set(EXTERNAL_SLAM_SYSTEMS kimera_vio basalt)
  foreach(slam_system IN LISTS EXTERNAL_SLAM_SYSTEMS)
  	if(PKGCONFIG_FOUND)
  		pkg_check_modules(${slam_system} ${slam_system})
  	endif()
  	if(${slam_system}_FOUND)
  		set(SLAM ON)
  		set(SLAM_NAME ${slam_system})
  		set(SLAM_LIBRARIES ${${slam_system}_LIBRARIES})
  		set(SLAM_INCLUDE_DIRS ${${slam_system}_INCLUDE_DIRS})
  		break()
  	endif()
  endforeach()

  # ILLIXR
  set(ILLIXR_PATH
      ""
      CACHE PATH "Path to ILLIXR headers"
  	)

  这里其实并没有什么重要的内容，但是要记住如果是Android工程，那么

  if(ANDROID)
  	find_library(ANDROID_LIBRARY android)
  	find_library(ANDROID_LOG_LIBRARY log)
  endif()

  我们是在Android Studio中进行编译的，其实IDE工具帮我们封装好了很多的事情，NDK的部分中有build/cmake/android.toolchain.cmake，其中line 279

  > # Standard cross-compiling stuff.
  > set(ANDROID TRUE)
  > set(CMAKE_SYSTEM_NAME Android)
  >

• 第三部分就是一些预置option的打开和关闭了

  option(XRT_FEATURE_COLOR_LOG "Enable logging in color on supported platforms" ON)
  cmake_dependent_option(XRT_HAVE_PERCETTO "Enable percetto support" ON "PERCETTO_FOUND" OFF)
  cmake_dependent_option(XRT_FEATURE_TRACING "Enable debug tracing on supported platforms" OFF "XRT_HAVE_PERCETTO" OFF)

  cmake_dependent_option(CMAKE_INTERPROCEDURAL_OPTIMIZATION "Enable inter-procedural (link-time) optimization" OFF "HAS_IPO" OFF)
  cmake_dependent_option(XRT_HAVE_WAYLAND "Enable Wayland support" ON "WAYLAND_FOUND AND WAYLAND_SCANNER_FOUND AND WAYLAND_PROTOCOLS_FOUND AND LIBDRM_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_WAYLAND_DIRECT "Enable Wayland direct support" ON "XRT_HAVE_WAYLAND AND LIBDRM_FOUND AND WAYLAND_PROTOCOLS_VERSION VERSION_GREATER_EQUAL 1.22" OFF)
  cmake_dependent_option(XRT_HAVE_XLIB "Enable xlib support" ON "X11_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_XRANDR "Enable xlib-xrandr support" ON "XRANDR_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_XCB "Enable xcb support" ON "XCB_FOUND" OFF)

  cmake_dependent_option(XRT_HAVE_VULKAN "Enable Vulkan Graphics API support (also needed for compositor)" ON "VULKAN_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_OPENGL "Enable OpenGL Graphics API support" ON "OPENGL_WITHOUT_GLX_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_OPENGL_GLX "Enable OpenGL Graphics API support on X11 (GLX)" ON "XRT_HAVE_OPENGL; OpenGL_GLX_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_OPENGLES "Enable OpenGL-ES Graphics API support" ON "OpenGLES_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_EGL "Enable OpenGL(-ES) on EGL Graphics API support" ON "EGL_FOUND; XRT_HAVE_OPENGL OR XRT_HAVE_OPENGLES" OFF)

  cmake_dependent_option(XRT_HAVE_DBUS "Enable dbus support (for BLE support)" ON "DBUS_FOUND" OFF)
  cmake_dependent_option(XRT_FEATURE_COMPOSITOR_MAIN "Build main compositor host functionality" ON "XRT_HAVE_VULKAN; XRT_HAVE_WAYLAND OR XRT_HAVE_XCB OR ANDROID OR WIN32" OFF)
  cmake_dependent_option(XRT_HAVE_LIBBSD "Enable libbsd support" ON "LIBBSD_FOUND" OFF)
  cmake_dependent_option(XRT_FEATURE_OPENXR "Build OpenXR runtime target" ON "XRT_FEATURE_COMPOSITOR_MAIN" OFF)
  cmake_dependent_option(XRT_FEATURE_IPC "Enable the build of the IPC layer" ON "NOT WIN32" OFF)
  cmake_dependent_option(XRT_FEATURE_SERVICE "Enable separate service module for OpenXR runtime" ON "XRT_FEATURE_IPC AND XRT_FEATURE_OPENXR" OFF)
  cmake_dependent_option(XRT_HAVE_SYSTEMD "Enable systemd support (for socket activation of service)" ON "Systemd_FOUND AND XRT_FEATURE_SERVICE" OFF)
  cmake_dependent_option(XRT_INSTALL_SYSTEMD_UNIT_FILES "Install user unit files for systemd socket activation on installation" ON "XRT_HAVE_SYSTEMD" OFF)
  cmake_dependent_option(XRT_INSTALL_ABSOLUTE_SYSTEMD_UNIT_FILES "Use an absolute path to monado-system in installed user unit files for systemd socket activation" ON "XRT_INSTALL_SYSTEMD_UNIT_FILES" OFF)
  cmake_dependent_option(XRT_FEATURE_STEAMVR_PLUGIN "Build SteamVR plugin" ON "NOT ANDROID" OFF)

  if(NOT DEFINED XRT_FEATURE_OPENXR_LAYER_DEPTH)
  	set(XRT_FEATURE_OPENXR_LAYER_DEPTH ON)
  endif()
  if(NOT DEFINED XRT_FEATURE_OPENXR_LAYER_CUBE)
  	set(XRT_FEATURE_OPENXR_LAYER_CUBE OFF)
  endif()
  if(NOT DEFINED XRT_FEATURE_OPENXR_LAYER_CYLINDER)
  	set(XRT_FEATURE_OPENXR_LAYER_CYLINDER ON)
  endif()
  if(NOT DEFINED XRT_FEATURE_OPENXR_LAYER_EQUIRECT2)
  	set(XRT_FEATURE_OPENXR_LAYER_EQUIRECT2 ON)
  endif()
  if(NOT DEFINED XRT_FEATURE_OPENXR_LAYER_EQUIRECT1)
  	set(XRT_FEATURE_OPENXR_LAYER_EQUIRECT1 ON)
  endif()

  # Most users won't touch these.
  mark_as_advanced(XRT_FEATURE_COMPOSITOR_MAIN XRT_FEATURE_OPENXR)


  if(CMAKE_SYSTEM_NAME STREQUAL "Linux")
  	set(XRT_HAVE_LIBUDEV ON)
  	set(XRT_HAVE_INTERNAL_HID ON)
  else()
  	cmake_dependent_option(XRT_HAVE_LIBUDEV "Enable libudev (used for device probing on Linux)" ON "UDEV_FOUND" OFF)
  endif()

  cmake_dependent_option(XRT_HAVE_LIBUSB "Enable libusb (used for most drivers)" ON "LIBUSB1_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_JPEG "Enable jpeg code (used for some video drivers)" ON "JPEG_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_OPENCV "Enable OpenCV backend" ON "OpenCV_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_LIBUVC "Enable libuvc video driver" ON "LIBUVC_FOUND AND XRT_HAVE_LIBUSB" OFF)
  cmake_dependent_option(XRT_HAVE_FFMPEG "Enable ffmpeg testing video driver" ON "FFMPEG_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_SDL2 "Enable use of SDL2" ON "SDL2_FOUND AND XRT_HAVE_OPENGL" OFF)
  cmake_dependent_option(XRT_HAVE_SYSTEM_CJSON "Enable cJSON from system, instead of bundled source" ON "CJSON_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_GST "Enable gstreamer" ON "GST_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_REALSENSE "Enable RealSense support" ON "realsense2_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_ONNXRUNTIME "Enable ONNX runtime support" ON "ONNXRUNTIME_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_KIMERA_SLAM "Enable Kimera support" ON "kimera_vio_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_BASALT_SLAM "Enable Basalt support" ON "basalt_FOUND" OFF)
  cmake_dependent_option(XRT_HAVE_SLAM "Enable SLAM tracking support" ON "SLAM;XRT_HAVE_OPENCV" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_PSVR "Enable PSVR HMD driver" ON "HIDAPI_FOUND" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_REALSENSE "Enable RealSense device driver" ON "XRT_HAVE_REALSENSE" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_VIVE "Enable driver for HTC Vive, Vive Pro, Valve Index, and their controllers" ON "ZLIB_FOUND AND XRT_HAVE_LINUX" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_OHMD "Enable OpenHMD driver" ON "OPENHMD_FOUND" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_HANDTRACKING "Enable Camera Hand Tracking driver" ON "XRT_HAVE_ONNXRUNTIME AND XRT_HAVE_OPENCV AND XRT_HAVE_V4L2" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_DAYDREAM "Enable the Google Daydream View controller driver (BLE, via D-Bus)" ON "XRT_HAVE_DBUS" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_ARDUINO "Enable Arduino input device with BLE via via D-Bus" ON "XRT_HAVE_DBUS" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_ILLIXR "Enable ILLIXR driver" ON "ILLIXR_PATH" OFF)
  option(XRT_BUILD_DRIVER_DUMMY "Enable dummy driver" ON)
  cmake_dependent_option(XRT_BUILD_DRIVER_ULV2 "Enable Ultraleap v2 driver" ON "LeapV2_FOUND" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_REMOTE "Enable remote debugging driver" ON "XRT_HAVE_LINUX OR ANDROID" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_WMR "Enable Windows Mixed Reality driver" ON "NOT WIN32" OFF)

  option(XRT_BUILD_SAMPLES "Enable compiling sample code implementations that will not be linked into any final targets" ON)

  # These all use the Monado internal hid wrapper.
  cmake_dependent_option(XRT_BUILD_DRIVER_HDK "Enable HDK driver" ON "XRT_HAVE_INTERNAL_HID" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_PSMV "Enable Playstation Move driver" ON "XRT_HAVE_INTERNAL_HID" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_HYDRA "Enable Hydra driver" ON "XRT_HAVE_INTERNAL_HID" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_NS "Enable North Star driver" ON "XRT_HAVE_INTERNAL_HID" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_VF "Build video frame driver (for video file support, uses gstreamer)" ON "XRT_HAVE_GST" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_DEPTHAI "DepthAI" ON "depthai_FOUND" OFF)

  cmake_dependent_option(XRT_BUILD_DRIVER_SURVIVE "Enable libsurvive driver" ON "SURVIVE_FOUND" OFF)

  cmake_dependent_option(XRT_BUILD_DRIVER_ANDROID "Enable Android sensors driver" ON "ANDROID" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_QWERTY "Enable Qwerty driver" ON "XRT_HAVE_SDL2" OFF)
  cmake_dependent_option(XRT_BUILD_DRIVER_EUROC "Enable EuRoC dataset driver for SLAM evaluation" ON "XRT_HAVE_OPENCV" OFF)

  表达式cmake_dependent_option的含义是：cmake_dependent_option(OPT_VAR "OPT_VAR_DES" DEF_VAL_1 "CONDITION_EXP" DEF_VAR_2)

  其中OPT_VAR的值会取决于"CONDITION_EXP"，如果这个值为True，那么OPT_VAR的值就是DEF_VAL_1，如果为False，那就是DEF_VAR_2

其中的变量推导和计算我们就忽略了，直接最后的message输出：src/xrt/targets/openxr_android/.cxx/cmake/inProcessDebug/x86_64/cmake_server_log.txt

这个输出的部分其实是第五部分的内容。

GIT_DESC                              :         v21.0.0-1291-g72e0ccb7
XRT_HAVE_GST                          :         OFF
XRT_HAVE_WAYLAND                      :         OFF
XRT_HAVE_WAYLAND_DIRECT               :         OFF
XRT_HAVE_XLIB                         :         OFF
XRT_HAVE_XRANDR                       :         OFF
XRT_HAVE_XCB                          :         OFF
XRT_HAVE_VULKAN                       :         ON
XRT_HAVE_OPENGL                       :         OFF
XRT_HAVE_OPENGL_GLX                   :         OFF
XRT_HAVE_OPENGLES                     :         ON
XRT_HAVE_EGL                          :         ON
XRT_HAVE_DBUS                         :         OFF
XRT_HAVE_LIBBSD                       :         OFF
XRT_HAVE_SYSTEMD                      :         OFF
XRT_HAVE_LIBUSB                       :         OFF
XRT_HAVE_JPEG                         :         OFF
XRT_HAVE_OPENCV                       :         OFF
XRT_HAVE_LIBUVC                       :         OFF
XRT_HAVE_FFMPEG                       :         OFF
XRT_HAVE_SDL2                         :         OFF
XRT_HAVE_PERCETTO                     :         OFF
XRT_HAVE_REALSENSE                    :         OFF
XRT_HAVE_ONNXRUNTIME                  :         OFF
XRT_HAVE_SYSTEM_CJSON                 :         OFF
XRT_HAVE_KIMERA_SLAM                  :         OFF
XRT_HAVE_BASALT_SLAM                  :         OFF
XRT_HAVE_SLAM                         :         OFF
XRT_FEATURE_IPC                       :         ON
XRT_FEATURE_COMPOSITOR_MAIN           :         ON
XRT_FEATURE_SERVICE                   :         OFF
XRT_FEATURE_OPENXR                    :         ON
XRT_FEATURE_OPENXR_LAYER_DEPTH        :         ON
XRT_FEATURE_OPENXR_LAYER_CUBE         :         OFF
XRT_FEATURE_OPENXR_LAYER_CYLINDER     :         ON
XRT_FEATURE_OPENXR_LAYER_EQUIRECT2    :         ON
XRT_FEATURE_OPENXR_LAYER_EQUIRECT1    :         ON
XRT_FEATURE_STEAMVR_PLUGIN            :         OFF
XRT_FEATURE_COLOR_LOG                 :         ON
XRT_FEATURE_TRACING                   :         OFF
XRT_BUILD_DRIVER_ANDROID              :         ON
XRT_BUILD_DRIVER_ARDUINO              :         OFF
XRT_BUILD_DRIVER_DAYDREAM             :         OFF
XRT_BUILD_DRIVER_DUMMY                :         ON
XRT_BUILD_DRIVER_HANDTRACKING         :         OFF
XRT_BUILD_DRIVER_HDK                  :         OFF
XRT_BUILD_DRIVER_HYDRA                :         OFF
XRT_BUILD_DRIVER_ILLIXR               :         OFF
XRT_BUILD_DRIVER_NS                   :         OFF
XRT_BUILD_DRIVER_ULV2                 :         OFF
XRT_BUILD_DRIVER_OHMD                 :         OFF
XRT_BUILD_DRIVER_PSMV                 :         OFF
XRT_BUILD_DRIVER_PSVR                 :         OFF
XRT_BUILD_DRIVER_REALSENSE            :         OFF
XRT_BUILD_DRIVER_REMOTE               :         ON
XRT_BUILD_DRIVER_SURVIVE              :         OFF
XRT_BUILD_DRIVER_VF                   :         OFF
XRT_BUILD_DRIVER_DEPTHAI              :         OFF
XRT_BUILD_DRIVER_VIVE                 :         OFF
XRT_BUILD_DRIVER_QWERTY               :         OFF
XRT_BUILD_DRIVER_WMR                  :         ON
XRT_BUILD_DRIVER_EUROC                :         OFF

• 第四部分是真正项目编译有关的了，其中定义XRT_ANDROID_PACKAGE，可以看出是根据我们的Flavor来的

  if(ANDROID AND NOT XRT_ANDROID_PACKAGE)
  	if(XRT_FEATURE_SERVICE)
  		set(XRT_ANDROID_PACKAGE "org.freedesktop.monado.openxr_runtime.out_of_process")
  	else()
  		set(XRT_ANDROID_PACKAGE "org.freedesktop.monado.openxr_runtime.in_process")
  	endif()
  endif()

  if(ANDROID)
  	set(VK_USE_PLATFORM_ANDROID_KHR TRUE)
  endif()

  ###
  # Descend into the source
  ###

  add_subdirectory(src)
  add_subdirectory(doc)

• 最后它留了一个伏笔，add_subdirectory(src)

因此，整个根目录下的CMakeList其实是完成了大部分的宏定义，并且引出了整个编译的subdirectory，也即src目录

src

其中monado/src/CMakeLists.txt的内容

add_subdirectory(external)
add_subdirectory(xrt)

src/external

monado/src/external/CMakeLists.txt中大部分都是add_library，按照顺序依次分析

• Catch2

  # Copyright 2020, Collabora, Ltd.
  # SPDX-License-Identifier: BSL-1.0

  # Catch2
  add_library(xrt-external-catch2 INTERFACE)
  target_include_directories(xrt-external-catch2 INTERFACE ${CMAKE_CURRENT_SOURCE_DIR}/Catch2)

• openvr

  add_library(xrt-external-openvr INTERFACE)
  target_include_directories(
  	xrt-external-openvr INTERFACE ${CMAKE_CURRENT_SOURCE_DIR}/openvr_includes
  	)

• cJSON：XRT_HAVE_SYSTEM_CJSON:OFF

  # cJSON
  add_library(xrt-external-cjson INTERFACE)
  if(XRT_HAVE_SYSTEM_CJSON)
  	target_link_libraries(xrt-external-cjson INTERFACE cJSON::cJSON)
  else()
  	target_include_directories(xrt-external-cjson INTERFACE ${CMAKE_CURRENT_SOURCE_DIR}/cjson)
  	target_compile_definitions(xrt-external-cjson INTERFACE CJSON_HIDE_SYMBOLS)
  endif()

• FlexKalman

  # FlexKalman
  add_library(xrt-external-flexkalman INTERFACE)
  target_include_directories(xrt-external-flexkalman INTERFACE ${CMAKE_CURRENT_SOURCE_DIR}/flexkalman)

• Glad

  # Glad
  add_library(xrt-external-glad INTERFACE)
  target_include_directories(xrt-external-glad INTERFACE ${CMAKE_CURRENT_SOURCE_DIR}/glad/include)

• Hungarian graph algorithm

  # Hungarian graph algorithm
  add_library(xrt-external-hungarian INTERFACE)
  target_include_directories(xrt-external-hungarian INTERFACE ${CMAKE_CURRENT_SOURCE_DIR}/hungarian)

• JNIPP and Android JNI wrappers

  # JNIPP and Android JNI wrappers
  if(ANDROID)
  	add_library(xrt-external-jnipp STATIC jnipp/jnipp.cpp)
  	target_include_directories(xrt-external-jnipp PUBLIC ${CMAKE_CURRENT_SOURCE_DIR}/jnipp)

  	file(GLOB WRAP_SOURCES android-jni-wrap/wrap/*.cpp)
  	add_library(xrt-external-jni-wrap STATIC ${WRAP_SOURCES})
  	target_include_directories(
  		xrt-external-jni-wrap PUBLIC ${CMAKE_CURRENT_SOURCE_DIR}/android-jni-wrap
  		)
  	target_link_libraries(xrt-external-jni-wrap PUBLIC xrt-external-jnipp)
  endif()

• OpenXR

  # OpenXR
  add_library(xrt-external-openxr INTERFACE)
  target_include_directories(
  	xrt-external-openxr INTERFACE ${CMAKE_CURRENT_SOURCE_DIR}/openxr_includes
  	)

• External SLAM tracking：

  • cmake_dependent_option(XRT_HAVE_SLAM "Enable SLAM tracking support" ON "SLAM;XRT_HAVE_OPENCV" OFF)
  • 因为XRT_HAVE_SLAM = OFF，从而我们推导出SLAM=OFF

  # External SLAM tracking
  if(SLAM)
  	add_library(xrt-external-slam STATIC slam_tracker/slam_tracker.hpp)
  	set_target_properties(xrt-external-slam PROPERTIES LINKER_LANGUAGE CXX)
  	target_include_directories(
  		xrt-external-slam INTERFACE ${CMAKE_CURRENT_SOURCE_DIR}/slam_tracker
  		)
  	target_include_directories(xrt-external-slam INTERFACE ${SLAM_INCLUDE_DIRS})
  	target_link_libraries(xrt-external-slam INTERFACE ${SLAM_LIBRARIES})
  endif()

• STB

  # STB
  add_library(xrt-external-stb INTERFACE)
  target_include_directories(xrt-external-stb INTERFACE ${CMAKE_CURRENT_SOURCE_DIR}/stb)

• imgui：XRT_HAVE_OPENGL:OFF

  # imgui
  if(XRT_HAVE_OPENGL)
  	add_library(
  		xrt-external-imgui STATIC
  		imgui/imgui/cimgui.cpp
  		imgui/imgui/cimgui.h
  		imgui/imgui/cimplot.cpp
  		imgui/imgui/cimplot.h
  		imgui/imgui/imconfig.h
  		imgui/imgui/imgui.cpp
  		imgui/imgui/imgui.h
  		imgui/imgui/imgui_demo.cpp
  		imgui/imgui/imgui_draw.cpp
  		imgui/imgui/imgui_impl_opengl3.cpp
  		imgui/imgui/imgui_impl_opengl3.h
  		imgui/imgui/imgui_internal.h
  		imgui/imgui/imgui_widgets.cpp
  		imgui/imgui/implot.cpp
  		imgui/imgui/implot.h
  		imgui/imgui/implot_demo.cpp
  		imgui/imgui/implot_internal.h
  		imgui/imgui/implot_items.cpp
  		imgui/imgui/imstb_rectpack.h
  		imgui/imgui/imstb_textedit.h
  		imgui/imgui/imstb_truetype.h
  		imgui/imgui_monado/imgui_monado.cpp
  		)

  	target_include_directories(
  		xrt-external-imgui SYSTEM PUBLIC ${CMAKE_CURRENT_SOURCE_DIR}/imgui
  		)
  	target_include_directories(xrt-external-imgui PRIVATE ${CMAKE_CURRENT_SOURCE_DIR}/imgui)
  	target_compile_definitions(xrt-external-imgui PUBLIC CIMGUI_NO_EXPORT)
  	set_target_properties(xrt-external-imgui PROPERTIES INTERPROCEDURAL_OPTIMIZATION OFF)
  	target_link_libraries(xrt-external-imgui PUBLIC xrt-external-glad)

  	if(XRT_HAVE_SDL2)
  		add_library(
  			xrt-external-imgui-sdl2 STATIC
  			imgui/imgui/cimgui_sdl.cpp imgui/imgui/imgui_impl_sdl.cpp
  			imgui/imgui/imgui_impl_sdl.h
  			)
  		target_link_libraries(
  			xrt-external-imgui-sdl2
  			PUBLIC xrt-external-imgui
  			PUBLIC ${SDL2_LIBRARIES}
  			)

  		target_include_directories(xrt-external-imgui-sdl2 PUBLIC ${SDL2_INCLUDE_DIRS})
  		target_include_directories(
  			xrt-external-imgui-sdl2 PUBLIC ${CMAKE_CURRENT_SOURCE_DIR}/imgui
  			)
  		set_target_properties(
  			xrt-external-imgui-sdl2 PROPERTIES INTERPROCEDURAL_OPTIMIZATION OFF
  			)
  	endif()

  endif()

在这里需要注意的是，真正参与编译的library中，只有JNIPP and Android JNI wrappers是使用的STATIC关键字：

• add_library(xrt-external-jnipp STATIC jnipp/jnipp.cpp)
• add_library(xrt-external-jni-wrap STATIC ${WRAP_SOURCES})

这两个库最终都会被link到xrt-external-jni-wrap：

• target_link_libraries(xrt-external-jni-wrap PUBLIC xrt-external-jnipp)

其余的模块都是使用的INTERFACE关键字：

• add_library(xrt-external-catch2 INTERFACE)
• add_library(xrt-external-catch2 INTERFACE)
• add_library(xrt-external-openvr INTERFACE)
• add_library(xrt-external-cjson INTERFACE)
• add_library(xrt-external-flexkalman INTERFACE)
• add_library(xrt-external-glad INTERFACE)
• add_library(xrt-external-hungarian INTERFACE)
• add_library(xrt-external-openxr INTERFACE)
• add_library(xrt-external-stb INTERFACE)

以上是整个extrnal模块的分析，可以看出来实质上是编译了android jni的wrap库。

src/xrt

重要的部分其实是在monado/src/xrt/CMakeLists.txt，其中：XRT_FEATURE_IPC：ON

# Copyright 2019, Collabora, Ltd.
# SPDX-License-Identifier: BSL-1.0
add_subdirectory(include)
add_subdirectory(auxiliary)
add_subdirectory(drivers)
add_subdirectory(compositor)
add_subdirectory(state_trackers)
add_subdirectory(targets)

if(XRT_FEATURE_IPC)
	add_subdirectory(ipc)
endif()

这个部分只能挨个来拆解看一下。

include

monado/src/xrt/include/CMakeLists.txt

# Copyright 2020, Collabora, Ltd.
# SPDX-License-Identifier: BSL-1.0

add_subdirectory(xrt)

add_library(xrt-interfaces INTERFACE)
target_include_directories(
	xrt-interfaces INTERFACE ${CMAKE_CURRENT_SOURCE_DIR} ${CMAKE_CURRENT_BINARY_DIR}
	)

xrt

monado/src/xrt/include/xrt/CMakeLists.txt，这个cmake依旧做了一个INTERFACE的library，再看一下include/xrt/CMakeLists.txt的内容

#include/xrt/CMakeLists.txt

#Copyright 2020-2021, Collabora, Ltd.
# SPDX-License-Identifier: BSL-1.0

# Generate a header containing defines for each enabled driver
set(FILE_CONTENTS "")
foreach(driver ${AVAILABLE_DRIVERS})
	if(XRT_BUILD_DRIVER_${driver})
		string(APPEND FILE_CONTENTS "#define XRT_BUILD_DRIVER_${driver}\n")
	endif()
endforeach()

# First setup all of the config headers.
configure_file(
	${CMAKE_CURRENT_SOURCE_DIR}/xrt_config_drivers.h.cmake_in
	${CMAKE_CURRENT_BINARY_DIR}/xrt_config_drivers.h @ONLY
	)
configure_file(
	${CMAKE_CURRENT_SOURCE_DIR}/xrt_config_have.h.cmake_in
	${CMAKE_CURRENT_BINARY_DIR}/xrt_config_have.h @ONLY
	)
configure_file(
	${CMAKE_CURRENT_SOURCE_DIR}/xrt_config_build.h.cmake_in
	${CMAKE_CURRENT_BINARY_DIR}/xrt_config_build.h @ONLY
	)
configure_file(
	${CMAKE_CURRENT_SOURCE_DIR}/xrt_config_vulkan.h.cmake_in
	${CMAKE_CURRENT_BINARY_DIR}/xrt_config_vulkan.h @ONLY
	)

configure_file(
	${CMAKE_CURRENT_SOURCE_DIR}/xrt_config_android.h.cmake_in
	${CMAKE_CURRENT_BINARY_DIR}/xrt_config_android.h @ONLY
	)

根据我们先前的解析和定义，其中以XRT_BUILD_DRIVER_开头的driver定义为ON的：

• XRT_BUILD_DRIVER_ANDROID:ON
• XRT_BUILD_DRIVER_DUMMY:ON
• XRT_BUILD_DRIVER_REMOTE:ON
• XRT_BUILD_DRIVER_WMR:ON

因此，这个模块其实就是定义了四个宏：

• #define XRT_BUILD_DRIVER_ANDROID
• #define XRT_BUILD_DRIVER_DUMMY
• #define XRT_BUILD_DRIVER_REMOTE
• #define XRT_BUILD_DRIVER_WMR

接着看include/xrt/CMakeLists.txt的第二部分configure_file，这个部分其实是做文件的copy，并把其中的一些变量做一下替换，简单来看看两个文件。

• ./src/xrt/include/xrt/xrt_config_android.h.cmake_in

  // Copyright 2020, Collabora, Ltd.
  // SPDX-License-Identifier: BSL-1.0
  /*!
   * @file
   * @brief  Android defines.
   * @author Ryan Pavlik <ryan.pavlik@collabora.com>
   * @ingroup xrt_iface
   */

  #pragma once

  #cmakedefine XRT_ANDROID_PACKAGE "@XRT_ANDROID_PACKAGE@"

  • 生成文件src/xrt/targets/openxr_android/.cxx/cmake/inProcessDebug/arm64-v8a/src/xrt/include/xrt/xrt_config_android.h

    // Copyright 2020, Collabora, Ltd.
    // SPDX-License-Identifier: BSL-1.0
    /*!
     * @file
     * @brief  Android defines.
     * @author Ryan Pavlik <ryan.pavlik@collabora.com>
     * @ingroup xrt_iface
     */

    #pragma once

    #define XRT_ANDROID_PACKAGE "org.freedesktop.monado.openxr_runtime.in_process"

• ./src/xrt/include/xrt/xrt_config_drivers.h.cmake_in

  // Copyright 2019-2020, Collabora, Ltd.
  // SPDX-License-Identifier: BSL-1.0
  /*!
   * @file
   * @brief  What drivers are we building.
   * @author Jakob Bornecrantz <jakob@collabora.com>
   * @ingroup xrt_iface
   */

  #pragma once

  @FILE_CONTENTS@

  • 生成文件src/xrt/targets/openxr_android/.cxx/cmake/inProcessDebug/arm64-v8a/src/xrt/include/xrt/xrt_config_drivers.h

    // Copyright 2019-2020, Collabora, Ltd.
    // SPDX-License-Identifier: BSL-1.0
    /*!
     * @file
     * @brief  What drivers are we building.
     * @author Jakob Bornecrantz <jakob@collabora.com>
     * @ingroup xrt_iface
     */

    #pragma once

    #define XRT_BUILD_DRIVER_ANDROID
    #define XRT_BUILD_DRIVER_DUMMY
    #define XRT_BUILD_DRIVER_REMOTE
    #define XRT_BUILD_DRIVER_WMR

    @FILE_CONTENTS@，其实在include/src/CMakeLists.txt中的for循环中有定义了

    > set(FILE_CONTENTS "")
    > foreach(driver ${AVAILABLE_DRIVERS})
    > 	if(XRT_BUILD_DRIVER_${driver})
    > 		string(APPEND FILE_CONTENTS "#define XRT_BUILD_DRIVER_${driver}\n")
    > 	endif()
    > endforeach()
    >

auxiliary

monado/src/xrt/auxiliary/CMakeLists.txt，这个CMakeLists的部分有点长，拆开来分析一下

• 首先是又增加了一个目录引用:add_subdirectory(bindings)

  # Copyright 2019-2021, Collabora, Ltd.
  # SPDX-License-Identifier: BSL-1.0

  add_subdirectory(bindings)

bindings

monado/src/xrt/auxiliary/bindings/CMakeLists.txt

# Copyright 2019-2021, Collabora, Ltd.
# SPDX-License-Identifier: BSL-1.0

# Binding generation: pass filename to generate
function(bindings_gen output)
	add_custom_command(
		OUTPUT "${CMAKE_CURRENT_BINARY_DIR}/${output}"
		COMMAND
			${PYTHON_EXECUTABLE} ${CMAKE_CURRENT_SOURCE_DIR}/bindings.py
			${CMAKE_CURRENT_SOURCE_DIR}/bindings.json
			"${CMAKE_CURRENT_BINARY_DIR}/${output}"
		VERBATIM
		DEPENDS ${CMAKE_CURRENT_SOURCE_DIR}/bindings.py
			${CMAKE_CURRENT_SOURCE_DIR}/bindings.json
		COMMENT "Generating ${output}"
		)
endfunction()

bindings_gen(b_generated_bindings.h)
bindings_gen(b_generated_bindings.c)

# Bindings library.
add_library(
	aux_generated_bindings STATIC ${CMAKE_CURRENT_BINARY_DIR}/b_generated_bindings.c
				      ${CMAKE_CURRENT_BINARY_DIR}/b_generated_bindings.h
	)

# needed globally for steamvr input profile generation in steamvr target
set_property(GLOBAL PROPERTY AUX_BINDINGS_DIR_PROP "${CMAKE_CURRENT_SOURCE_DIR}")

target_link_libraries(aux_generated_bindings PRIVATE xrt-interfaces aux_util)

• 通过阅读src/xrt/auxiliary/bindings/bindings.json可以知道，这一段其实是通过json文件生成c语言级别的解析函数。

回到monado/src/xrt/auxiliary/CMakeLists.txt

• Common includes

  # Common includes
  add_library(aux-includes INTERFACE)
  target_include_directories(
  	aux-includes INTERFACE ${CMAKE_CURRENT_SOURCE_DIR} ${CMAKE_CURRENT_BINARY_DIR}
  	)
  target_link_libraries(aux-includes INTERFACE xrt-interfaces)

• OpenGL library：XRT_HAVE_OPENGLES:ON，XRT_HAVE_EGL:ON

  # OpenGL library.
  if(XRT_HAVE_OPENGL OR XRT_HAVE_OPENGLES)
  	add_library(
  		aux_ogl STATIC
  		ogl/ogl_documentation.h
  		ogl/ogl_api.c
  		ogl/ogl_api.h
  		ogl/ogl_helpers.c
  		ogl/ogl_helpers.h
  		)
  	target_link_libraries(aux_ogl PUBLIC aux-includes xrt-external-glad)
  	if(XRT_HAVE_EGL)
  		target_sources(aux_ogl PRIVATE ogl/egl_api.c ogl/egl_api.h)
  	endif()
  	if(XRT_HAVE_OPENGLES)
  		target_link_libraries(aux_ogl PUBLIC EGL::EGL)
  	endif()
  endif()

• Math library

  # Math library.
  add_library(
  	aux_math STATIC
  	math/m_api.h
  	math/m_base.cpp
  	math/m_eigen_interop.hpp
  	math/m_filter_fifo.c
  	math/m_filter_fifo.h
  	math/m_filter_one_euro.c
  	math/m_filter_one_euro.h
  	math/m_hash.cpp
  	math/m_imu_3dof.c
  	math/m_imu_3dof.h
  	math/m_imu_pre.c
  	math/m_imu_pre.h
  	math/m_optics.c
  	math/m_permutation.c
  	math/m_permutation.h
  	math/m_predict.c
  	math/m_predict.h
  	math/m_quatexpmap.cpp
  	math/m_relation_history.h
  	math/m_relation_history.cpp
  	math/m_space.cpp
  	math/m_space.h
  	math/m_vec2.h
  	math/m_vec3.h
  	)
  target_link_libraries(aux_math PUBLIC aux-includes aux_util)
  target_include_directories(aux_math SYSTEM PRIVATE ${EIGEN3_INCLUDE_DIR})

• OS library:XRT_HAVE_DBUS:OFF

  # OS library.
  add_library(
  	aux_os STATIC
  	os/os_ble.h
  	os/os_documentation.h
  	os/os_hid.h
  	os/os_hid_hidraw.c
  	os/os_threading.h
  	)
  target_link_libraries(aux_os PUBLIC aux-includes xrt-pthreads)
  if(XRT_HAVE_DBUS)
  	target_sources(aux_os PRIVATE os/os_ble_dbus.c)
  	target_link_libraries(aux_os PRIVATE ${DBUS_LIBRARIES})
  	target_include_directories(aux_os SYSTEM PRIVATE ${DBUS_INCLUDE_DIRS})
  endif()

• GStreamer library:XRT_HAVE_GST:OFF

  # GStreamer library.
  if(XRT_HAVE_GST)
  	add_library(
  		aux_gstreamer STATIC
  		gstreamer/gst_internal.h
  		gstreamer/gst_sink.h
  		gstreamer/gst_sink.c
  		gstreamer/gst_pipeline.h
  		gstreamer/gst_pipeline.c
  		)
  	target_link_libraries(aux_gstreamer PUBLIC aux-includes)
  	target_link_libraries(aux_gstreamer PRIVATE xrt-interfaces aux_math aux_os ${GST_LIBRARIES})
  	target_include_directories(aux_gstreamer PRIVATE ${GST_INCLUDE_DIRS})
  endif()

• Tracking library

  # Tracking library.
  add_library(
  	aux_tracking STATIC
  	tracking/t_data_utils.c
  	tracking/t_imu_fusion.hpp
  	tracking/t_imu.cpp
  	tracking/t_imu.h
  	tracking/t_lowpass_vector.hpp
  	tracking/t_lowpass.hpp
  	tracking/t_tracking.h
  	)
  target_link_libraries(
  	aux_tracking
  	PUBLIC aux-includes xrt-external-cjson
  	PRIVATE aux_math aux_util xrt-external-flexkalman xrt-external-hungarian
  	)
  target_include_directories(aux_tracking SYSTEM PRIVATE ${EIGEN3_INCLUDE_DIR})

• OpenCV，XRT_HAVE_OPENCV:OFF

  if(XRT_HAVE_OPENCV)
  	target_sources(
  		aux_tracking
  		PRIVATE
  			tracking/t_calibration_opencv.hpp
  			tracking/t_calibration.cpp
  			tracking/t_convert.cpp
  			tracking/t_debug_hsv_filter.cpp
  			tracking/t_debug_hsv_picker.cpp
  			tracking/t_debug_hsv_viewer.cpp
  			tracking/t_euroc_recorder.cpp
  			tracking/t_euroc_recorder.h
  			tracking/t_file.cpp
  			tracking/t_frame_cv_mat_wrapper.cpp
  			tracking/t_frame_cv_mat_wrapper.hpp
  			tracking/t_fusion.hpp
  			tracking/t_helper_debug_sink.hpp
  			tracking/t_hsv_filter.c
  			tracking/t_kalman.cpp
  			tracking/t_tracker_psmv_fusion.hpp
  			tracking/t_tracker_psmv.cpp
  			tracking/t_tracker_psvr.cpp
  			tracking/t_tracker_hand.cpp
  		)
  	target_include_directories(aux_tracking SYSTEM PRIVATE ${OpenCV_INCLUDE_DIRS})
  	target_link_libraries(aux_tracking PUBLIC ${OpenCV_LIBRARIES})
  endif()

• SLAM，XRT_HAVE_SLAM:OFF

  if(XRT_HAVE_SLAM)
  	target_sources(aux_tracking PRIVATE tracking/t_tracker_slam.cpp)
  	target_link_libraries(aux_tracking PRIVATE xrt-external-slam)
  endif()

• Util library

  # Util library.
  add_library(
  	aux_util STATIC
  	util/u_bitwise.c
  	util/u_bitwise.h
  	util/u_debug.c
  	util/u_debug.h
  	util/u_device.c
  	util/u_device.h
  	util/u_distortion.c
  	util/u_distortion.h
  	util/u_distortion_mesh.c
  	util/u_distortion_mesh.h
  	util/u_documentation.h
  	util/u_file.c
  	util/u_file.cpp
  	util/u_file.h
  	util/u_format.c
  	util/u_format.h
  	util/u_frame.c
  	util/u_frame.h
  	util/u_generic_callbacks.hpp
  	util/u_git_tag.h
  	util/u_hand_tracking.c
  	util/u_hand_tracking.h
  	util/u_handles.c
  	util/u_handles.h
  	util/u_hashmap.cpp
  	util/u_hashmap.h
  	util/u_hashset.cpp
  	util/u_hashset.h
  	util/u_json.c
  	util/u_json.h
  	util/u_json.hpp
  	util/u_logging.c
  	util/u_logging.h
  	util/u_misc.c
  	util/u_misc.h
  	util/u_pacing.h
  	util/u_pacing_app.c
  	util/u_pacing_compositor.c
  	util/u_pacing_compositor_fake.c
  	util/u_sink.h
  	util/u_sink_combiner.c
  	util/u_sink_converter.c
  	util/u_sink_deinterleaver.c
  	util/u_sink_queue.c
  	util/u_sink_quirk.c
  	util/u_sink_split.c
  	util/u_string_list.cpp
  	util/u_string_list.h
  	util/u_string_list.hpp
  	util/u_template_historybuf.hpp
  	util/u_time.cpp
  	util/u_time.h
  	util/u_trace_marker.c
  	util/u_trace_marker.h
  	util/u_var.cpp
  	util/u_var.h
  	util/u_config_json.c
  	util/u_config_json.h
  	util/u_verify.h
  	util/u_process.c
  	util/u_process.h
  	"${CMAKE_CURRENT_BINARY_DIR}/u_git_tag.c"
  	)
  configure_file(
  	"${CMAKE_CURRENT_SOURCE_DIR}/util/u_git_tag.c.in" "${CMAKE_CURRENT_BINARY_DIR}/u_git_tag.c"
  	@ONLY
  	)
  target_link_libraries(aux_util PUBLIC aux-includes xrt-pthreads aux_generated_bindings aux_math)

  XRT_HAVE_JPEG:OFF

  if(XRT_HAVE_JPEG)
  	target_link_libraries(aux_util PRIVATE ${JPEG_LIBRARIES})
  	target_include_directories(aux_util PRIVATE ${JPEG_INCLUDE_DIRS})
  endif()

  XRT_HAVE_SYSTEM_CJSON:OFF

  if(XRT_HAVE_SYSTEM_CJSON)
  	target_link_libraries(aux_util PUBLIC cJSON::cJSON)
  	target_compile_definitions(aux_util PRIVATE XRT_HAVE_SYSTEM_CJSON)
  else()
  	target_link_libraries(aux_util PUBLIC xrt-external-cjson)
  endif()

  XRT_FEATURE_TRACING:OFF，XRT_HAVE_PERCETTO:OFF

  if(XRT_FEATURE_TRACING AND XRT_HAVE_PERCETTO)
  	target_link_libraries(aux_util PUBLIC Percetto::percetto)
  endif()

  XRT_HAVE_LIBBSD:OFF

  if(XRT_HAVE_LIBBSD)
  	target_include_directories(aux_util SYSTEM PRIVATE ${LIBBSD_INCLUDE_DIRS})
  	target_link_libraries(aux_util PUBLIC ${LIBBSD_LIBRARIES})
  endif()

  ANDROID:ON

  if(ANDROID)
  	target_link_libraries(aux_util PUBLIC ${ANDROID_LOG_LIBRARY})
  endif()

• Vulkan library，XRT_HAVE_VULKAN:ON,ANDROID=ON

  if(XRT_HAVE_VULKAN)
  	# Vulkan library.
  	add_library(
  		aux_vk STATIC
  		vk/vk_command_buffer.c
  		vk/vk_documentation.h
  		vk/vk_helpers.c
  		vk/vk_helpers.h
  		vk/vk_image_allocator.c
  		vk/vk_image_allocator.h
  		vk/vk_state_creators.c
  		)
  	target_link_libraries(aux_vk PUBLIC aux_os aux_util)
  	target_link_libraries(aux_vk PUBLIC Vulkan::Vulkan)
  	target_include_directories(aux_vk PUBLIC ${Vulkan_INCLUDE_DIR})
  	if(ANDROID)
  		target_link_libraries(aux_vk PUBLIC ${ANDROID_LIBRARY})
  	endif()
  endif()

• ViVE/SURVIVE Drivers，XRT_BUILD_DRIVER_VIVE:OFF，XRT_BUILD_DRIVER_SURVIVE:OFF

  if(XRT_BUILD_DRIVER_VIVE OR XRT_BUILD_DRIVER_SURVIVE)
  	set(VIVE_CONFIG_SOURCE_FILES vive/vive_config.h vive/vive_config.c)
  	add_library(aux_vive STATIC ${VIVE_CONFIG_SOURCE_FILES})
  	target_link_libraries(
  		aux_vive
  		PRIVATE
  			xrt-interfaces
  			aux_util
  			aux_math
  			aux_tracking
  			xrt-external-cjson
  			${ZLIB_LIBRARIES}
  		)
  	target_include_directories(aux_vive PRIVATE ${ZLIB_INCLUDE_DIRS})
  endif()

• aux_vk，aux_android

  if(ANDROID)
  	add_library(
  		android_app_glue STATIC
  		${ANDROID_NDK}/sources/android/native_app_glue/android_native_app_glue.c
  		)
  	target_include_directories(
  		android_app_glue PUBLIC ${ANDROID_NDK}/sources/android/native_app_glue
  		)
  	# disable these warnings in external code
  	target_compile_options(android_app_glue PRIVATE -Wno-format-pedantic)

  	add_library(
  		aux_android STATIC
  		android/android_ahardwarebuffer_allocator.c
  		android/android_ahardwarebuffer_allocator.h
  		android/android_custom_surface.cpp
  		android/android_custom_surface.h
  		android/android_globals.cpp
  		android/android_globals.h
  		android/android_load_class.cpp
  		android/android_load_class.hpp
  		android/android_looper.cpp
  		android/android_looper.h
  		android/org.freedesktop.monado.auxiliary.cpp
  		android/org.freedesktop.monado.auxiliary.hpp
  		android/org.freedesktop.monado.auxiliary.impl.hpp
  		)
  	target_link_libraries(
  		aux_android
  		PUBLIC aux_util
  		PRIVATE
  			${ANDROID_LIBRARY}
  			${ANDROID_LOG_LIBRARY}
  			xrt-external-jni-wrap
  			xrt-external-jnipp
  			android_app_glue
  		)
  	target_link_libraries(aux_vk PUBLIC aux_android)
  endif()

整个编译的CMakeLists非常长，但是其中真正编译出来的部分其实是

• add_library(aux_ogl STATIC XXXX)
• add_library(aux_math STATIC XXXX)
• add_library(aux_tracking STATIC XXXX)
• add_library(aux_util STATIC XXXX)
• add_library(aux_vk STATIC XXXX)
• add_library(android_app_glue STATIC XXXX)
• add_library(aux_android STATIC XXXX)

小结：从这里现在还无法判断出有哪些最终的target，但是从auxiliary的定义来说，是辅助工具类，所以这里大部分的target其实给其他模块做link使用的，这个可以在后面的CMakeList.txt中看到

drivers

monado/src/xrt/drivers/CMakeLists.txt，drivers的部分依旧非常长，由最早monado/CMakeLists.txt中的定义，我们可知：

• XRT_BUILD_DRIVER_ARDUINO
• XRT_BUILD_DRIVER_DAYDREAM
• XRT_BUILD_DRIVER_DEPTHAI
• XRT_BUILD_DRIVER_QWERTY
• XRT_BUILD_DRIVER_HDK
• XRT_BUILD_DRIVER_HYDRA
• XRT_BUILD_DRIVER_NS
• XRT_BUILD_DRIVER_ULV2
• XRT_BUILD_DRIVER_OHMD
• XRT_BUILD_DRIVER_PSMV
• XRT_BUILD_DRIVER_PSVR
• XRT_BUILD_DRIVER_REALSENSE
• XRT_BUILD_DRIVER_VIVE
• XRT_HAVE_V4L2
• XRT_BUILD_DRIVER_VF
• XRT_BUILD_DRIVER_HANDTRACKING
• XRT_BUILD_DRIVER_SURVIVE
• XRT_BUILD_DRIVER_ILLIXR
• XRT_BUILD_DRIVER_EUROC

都是OFF的状态，所以整个CMakeLists.txt被简化为：

# Copyright 2019-2021, Collabora, Ltd.
#
# SPDX-License-Identifier: BSL-1.0

set(ENABLED_HEADSET_DRIVERS)
set(ENABLED_DRIVERS)

add_library(drv_includes INTERFACE)
target_include_directories(drv_includes INTERFACE ${CMAKE_CURRENT_SOURCE_DIR})


if(XRT_BUILD_DRIVER_DUMMY)
	add_library(drv_dummy STATIC dummy/dummy_hmd.c dummy/dummy_interface.h dummy/dummy_prober.c)
	target_link_libraries(drv_dummy PRIVATE xrt-interfaces aux_util)
	list(APPEND ENABLED_HEADSET_DRIVERS dummy)
endif()

if(XRT_BUILD_DRIVER_REMOTE)
	add_library(
		drv_remote STATIC
		remote/r_device.c
		remote/r_hmd.c
		remote/r_hub.c
		remote/r_interface.h
		remote/r_internal.h
		)
	target_link_libraries(drv_remote PRIVATE xrt-interfaces aux_util)
	list(APPEND ENABLED_HEADSET_DRIVERS remote)
endif()

set(VIVE_CONFIG_INCLUDE "${CMAKE_CURRENT_SOURCE_DIR}/vive")

if(XRT_BUILD_DRIVER_ANDROID)
	add_library(
		drv_android STATIC android/android_prober.c android/android_prober.h
				   android/android_sensors.c android/android_sensors.h
		)
	target_link_libraries(
		drv_android
		PRIVATE
			xrt-interfaces
			aux_util
			aux_os
			aux_android
			${ANDROID_LIBRARY}
		)
	list(APPEND ENABLED_DRIVERS android)
endif()

add_library(drv_multi STATIC multi_wrapper/multi.c multi_wrapper/multi.h)
target_link_libraries(drv_multi PUBLIC xrt-interfaces aux_util)
list(APPEND ENABLED_HEADSET_DRIVERS drv_multi)

if(XRT_BUILD_DRIVER_WMR)
	add_library(
		drv_wmr STATIC
		wmr/wmr_camera.h
		wmr/wmr_common.h
		wmr/wmr_config.c
		wmr/wmr_config.h
		wmr/wmr_bt_controller.c
		wmr/wmr_bt_controller.h
		wmr/wmr_hmd.c
		wmr/wmr_hmd.h
		wmr/wmr_interface.h
		wmr/wmr_prober.c
		wmr/wmr_protocol.c
		wmr/wmr_protocol.h
		wmr/wmr_controller_protocol.c
		wmr/wmr_controller_protocol.h
		wmr/wmr_source.c
		wmr/wmr_source.h
		)
	target_link_libraries(drv_wmr PRIVATE xrt-interfaces aux_util aux_math aux_tracking xrt-external-cjson)
	list(APPEND ENABLED_HEADSET_DRIVERS wmr)

	# Can only build camera support with libusb
	if(XRT_HAVE_LIBUSB)
		target_sources(drv_wmr PRIVATE wmr/wmr_camera.c)
		target_include_directories(drv_wmr PUBLIC ${LIBUSB1_INCLUDE_DIRS})
		target_link_libraries(drv_wmr PRIVATE ${LIBUSB1_LIBRARIES})
	endif()
endif()


if(XRT_BUILD_SAMPLES)
	# We build the sample driver to make sure it stays valid,
	# but it never gets linked into a final target.
	add_library(
		drv_sample STATIC sample/sample_hmd.c sample/sample_interface.h
				  sample/sample_prober.c
		)
	target_link_libraries(drv_sample PRIVATE xrt-interfaces aux_util)
endif()

if(ENABLED_HEADSET_DRIVERS)
	set(ENABLED_DRIVERS ${ENABLED_HEADSET_DRIVERS} ${ENABLED_DRIVERS})
	list(SORT ENABLED_DRIVERS)
	string(REPLACE ";" " " ENABLED_DRIVERS "${ENABLED_DRIVERS}")
	message(STATUS "Enabled drivers: ${ENABLED_DRIVERS}")
else()
	message(FATAL_ERROR "You must enable at least one headset driver to build Monado.")
endif()

由此可知，这边参与编译的有：

• add_library(drv_dummy STATIC XXXX)
• add_library(drv_remote STATIC XXXX)
• add_library(drv_android STATIC XXXX)
• add_library(drv_multi STATIC XXXX)
• add_library(drv_wmr STATIC XXXX)
• add_library(drv_sample STATIC XXXX)

变量ENABLED_HEADSET_DRIVERS,ENABLED_DRIVERS的值分别为

• ENABLED_HEADSET_DRIVERS = dummy remote drv_multi wmr
• ENABLED_DRIVERS = android

小结：这样的话也比较容易理解，整个drivers目录其实就是针对不同的driver模块做了实现，具体的需要到各个module中去看。

compositor

monado/src/xrt/compositor/CMakeLists.txt，compositor是整个monado runtime中比较重要的模块，拆解分析：

• library : comp_client

  # Copyright 2019-2021, Collabora, Ltd.
  # SPDX-License-Identifier: BSL-1.0

  ###
  # Client library
  #

  add_library(comp_client STATIC)

  target_link_libraries(
  	comp_client
  	PUBLIC xrt-interfaces
  	PRIVATE aux_util
  	)
  target_include_directories(comp_client PRIVATE ${CMAKE_CURRENT_SOURCE_DIR})

• link vulkan，XRT_HAVE_VULKAN:ON

  if(XRT_HAVE_VULKAN)
  	target_sources(
  		comp_client PRIVATE client/comp_vk_client.c client/comp_vk_client.h
  				    client/comp_vk_glue.c
  		)
  	target_link_libraries(comp_client PRIVATE aux_vk)
  endif()

• link open gles

  • XRT_HAVE_OPENGLES:ON
  • XRT_HAVE_OPENGL:OFF
  • XRT_HAVE_EGL:ON
  • XRT_HAVE_OPENGL_GLX:OFF
  • XRT_HAVE_XLIB:OFF

  if(XRT_HAVE_OPENGL OR XRT_HAVE_OPENGLES)
  	target_sources(
  		comp_client
  		PRIVATE client/comp_gl_client.c client/comp_gl_client.h
  			client/comp_gl_memobj_swapchain.c client/comp_gl_memobj_swapchain.h
  		)
  	target_link_libraries(comp_client PRIVATE aux_ogl)
  endif()

  if(XRT_HAVE_OPENGL)
  	target_sources(comp_client PRIVATE client/comp_gl_glue.c)
  endif()

  if(XRT_HAVE_OPENGLES)
  	target_sources(comp_client PRIVATE client/comp_gles_glue.c)
  endif()

  if(XRT_HAVE_EGL)
  	target_sources(
  		comp_client PRIVATE client/comp_gl_eglimage_swapchain.c
  				    client/comp_gl_eglimage_swapchain.h
  		)
  endif()

  if(XRT_HAVE_OPENGL_GLX AND XRT_HAVE_XLIB)
  	target_sources(
  		comp_client PRIVATE client/comp_gl_xlib_client.c client/comp_gl_xlib_client.h
  				    client/comp_gl_xlib_glue.c
  		)
  	target_link_libraries(comp_client PRIVATE OpenGL::GLX)
  endif()

  if(XRT_HAVE_EGL)
  	target_sources(comp_client PRIVATE client/comp_egl_client.c client/comp_egl_client.h)
  endif()

• util library ，XRT_HAVE_VULKAN:ON

  ##
  # Util library
  #

  if(XRT_HAVE_VULKAN)
  	add_library(
  		comp_util STATIC
  		util/comp_base.h
  		util/comp_base.c
  		util/comp_swapchain.h
  		util/comp_swapchain.c
  		util/comp_sync.h
  		util/comp_sync.c
  		util/comp_vulkan.h
  		util/comp_vulkan.c
  		)
  	target_link_libraries(
  		comp_util
  		PUBLIC xrt-interfaces
  		PRIVATE aux_util aux_os aux_vk
  		)
  	target_include_directories(comp_util PRIVATE ${CMAKE_CURRENT_SOURCE_DIR})
  endif()

• Render library ，XRT_HAVE_VULKAN:ON

  ##
  # Render library
  #

  if(XRT_HAVE_VULKAN)
  	spirv_shaders(
  		SHADER_HEADERS
  		shaders/clear.comp
  		shaders/distortion.comp
  		shaders/distortion_timewarp.comp
  		shaders/mesh.frag
  		shaders/mesh.vert
  		shaders/layer.frag
  		shaders/layer.vert
  		shaders/equirect1.vert
  		shaders/equirect1.frag
  		shaders/equirect2.vert
  		shaders/equirect2.frag
  		)

  	add_library(
  		comp_render STATIC
  		${SHADER_HEADERS}
  		render/comp_buffer.c
  		render/comp_compute.c
  		render/comp_render.h
  		render/comp_rendering.c
  		render/comp_resources.c
  		render/comp_shaders.c
  		render/comp_util.c
  		)
  	target_link_libraries(
  		comp_render
  		PUBLIC xrt-interfaces
  		PRIVATE aux_util aux_os aux_vk
  		)
  	target_include_directories(comp_render PRIVATE ${CMAKE_CURRENT_SOURCE_DIR})
  	# Shaders - marked SYSTEM so we get no warnings
  	target_include_directories(comp_render SYSTEM PRIVATE ${CMAKE_CURRENT_BINARY_DIR})

  	add_subdirectory(shaders)
  endif()

  • add_subdirectory(shaders)

    # Copyright 2019, Collabora, Ltd.
    # SPDX-License-Identifier: BSL-1.0

    # CMakeLists.txt required for CMake to create the shaders/ directory in the build tree.
    # Generated shaders will be placed there.

    如注释所述，需要把整个shaders放在build tree中，因此只能放一个空的CMakeLists.txt

• Main library，整个scope比较长，由于我们已经提前知晓：

  • XRT_FEATURE_COMPOSITOR_MAIN:OFF
  • XRT_HAVE_XCB:OFF
  • XRT_HAVE_XLIB:OFF
  • VK_USE_PLATFORM_ANDROID_KHR:ON
  • ANDROID:ON

  整个段落就被简化为：

  ##
  # Main library
  #

  if(XRT_FEATURE_COMPOSITOR_MAIN)

  	add_library(
  		comp_main STATIC
  		main/comp_compositor.c
  		main/comp_compositor.h
  		main/comp_documentation.h
  		main/comp_renderer.c
  		main/comp_renderer.h
  		main/comp_settings.c
  		main/comp_settings.h
  		main/comp_target.h
  		main/comp_target_swapchain.c
  		main/comp_target_swapchain.h
  		main/comp_window.h
  		main/comp_layer.h
  		main/comp_layer.c
  		main/comp_layer_renderer.h
  		main/comp_layer_renderer.c
  		)
  	target_link_libraries(
  		comp_main
  		PUBLIC xrt-interfaces
  		PRIVATE
  			aux_util
  			aux_os
  			aux_vk
  			comp_util
  			comp_render
  		)
  	target_include_directories(comp_main PRIVATE ${CMAKE_CURRENT_SOURCE_DIR})

  	if(ANDROID)
  		target_sources(comp_main PRIVATE main/comp_window_android.c)
  		target_link_libraries(comp_main PRIVATE aux_ogl aux_android)
  	endif()
  endif()

• 最后是multi client compositor library的部分:

  ###
  # Multi client compositor library
  #

  add_library(
  	comp_multi STATIC multi/comp_multi_compositor.c multi/comp_multi_interface.h
  			  multi/comp_multi_private.h multi/comp_multi_system.c
  	)
  target_link_libraries(
  	comp_multi
  	PUBLIC xrt-interfaces
  	PRIVATE aux_util aux_os
  	)
  target_include_directories(comp_multi PUBLIC ${CMAKE_CURRENT_SOURCE_DIR})

  if(XRT_FEATURE_COMPOSITOR_MAIN)
  	target_link_libraries(comp_main PRIVATE comp_multi)
  endif()

小结：整个compositor的构建目标是 comp_main

state_trackers

monado/src/xrt/state_trackers/CMakeLists.txt

本来的理解中，state_trackers是monado runtime的状态机切换中的tracker（待后续代码确认）。

先查看一下state_trackers/CMakeLists.txt，其中：

• XRT_HAVE_OPENGL:OFF
• XRT_FEATURE_STEAMVR_PLUGIN:OFF

# Copyright 2019, Collabora, Ltd.
# SPDX-License-Identifier: BSL-1.0

if(XRT_HAVE_OPENGL)
	add_subdirectory(gui)
endif()
add_subdirectory(oxr)
add_subdirectory(prober)

if(XRT_FEATURE_STEAMVR_PLUGIN)
	add_subdirectory(steamvr_drv)
endif()

因此整个就简化为两句话了：

add_subdirectory(oxr)
add_subdirectory(prober)

oxr

monado/src/xrt/state_trackers/oxr/CMakeLists.txt，另外我们通过根目录的CMakeLists.txt已知：

• XRT_HAVE_VULKAN:ON
• XRT_HAVE_OPENGL:OFF
• XRT_HAVE_OPENGLES:ON
• XRT_HAVE_XLIB:OFF
• XRT_HAVE_EGL:ON
• ANDROID:ON

整个CMakeLists.txt可以简化为：

# Copyright 2019-2021, Collabora, Ltd.
# SPDX-License-Identifier: BSL-1.0

###
# Main code
#

add_library(
	st_oxr STATIC
	oxr_api_action.c
	oxr_api_funcs.h
	oxr_api_instance.c
	oxr_api_negotiate.c
	oxr_api_session.c
	oxr_api_space.c
	oxr_api_swapchain.c
	oxr_api_system.c
	oxr_api_verify.h
	oxr_binding.c
	oxr_chain.h
	oxr_event.c
	oxr_extension_support.h
	oxr_handle_base.c
	oxr_input.c
	oxr_input_transform.c
	oxr_input_transform.h
	oxr_instance.c
	oxr_logger.c
	oxr_logger.h
	oxr_objects.h
	oxr_path.c
	oxr_session.c
	oxr_session_frame_end.c
	oxr_space.c
	oxr_swapchain.c
	oxr_system.c
	oxr_two_call.h
	oxr_verify.c
	oxr_xdev.c
	)

if(XRT_HAVE_VULKAN)
	target_sources(st_oxr PRIVATE oxr_session_gfx_vk.c oxr_swapchain_vk.c oxr_vulkan.c)
	target_link_libraries(st_oxr PUBLIC Vulkan::Vulkan)
endif()


if(XRT_HAVE_OPENGLES)
	target_compile_definitions(st_oxr PRIVATE XR_USE_GRAPHICS_API_OPENGL_ES)
endif()

if(XRT_HAVE_OPENGL OR XRT_HAVE_OPENGLES)
	target_sources(st_oxr PRIVATE oxr_session_gfx_gl.c oxr_swapchain_gl.c)
	target_link_libraries(st_oxr PUBLIC aux_ogl)
endif()

if(ANDROID)
	target_compile_definitions(st_oxr PRIVATE XR_USE_PLATFORM_ANDROID)
	target_sources(st_oxr PRIVATE oxr_session_gfx_gles_android.c)
	target_link_libraries(st_oxr PRIVATE aux_android)
endif()

target_link_libraries(
	st_oxr
	PRIVATE
		xrt-interfaces
		xrt-external-openxr
		aux_util
		aux_math
		aux_generated_bindings
		comp_client
		aux-includes
	PUBLIC aux_os
	)

target_include_directories(
	st_oxr
	PRIVATE ${CMAKE_CURRENT_BINARY_DIR}
	INTERFACE ${CMAKE_CURRENT_SOURCE_DIR}/..
	)

因此整个target目标为：st_oxr

prober

monado/src/xrt/state_trackers/prober/CMakeLists.txt同样的，我们已知：

• XRT_HAVE_LIBUDEV:OFF
• XRT_HAVE_LIBUSB:OFF
• XRT_HAVE_OPENCV:OFF
• XRT_HAVE_V4L2:OFF
• XRT_BUILD_DRIVER_REMOTE:ON

整个CMakeLists可以简化为：

# Copyright 2019-2021, Collabora, Ltd.
# SPDX-License-Identifier: BSL-1.0

add_library(
	st_prober STATIC
	p_documentation.h
	p_dump.c
	p_prober.c
	p_prober.h
	p_tracking.c
	)

target_link_libraries(st_prober PUBLIC xrt-interfaces)
target_link_libraries(
	st_prober
	PRIVATE
		drv_includes
		drv_multi
		aux_util
		aux_os
		aux_tracking
	)

if(XRT_BUILD_DRIVER_REMOTE)
	target_link_libraries(st_prober PRIVATE drv_remote)
endif()

因此整个target目标为：st_prober

小结：对于state_trackers来说，最终会出现两个target:st_oxr以及st_prober

targets

monado/src/xrt/targets/CMakeLists.txt

targets在gradle的编译中其实已经有提到了，我们起点的部分是在openxr_android，最终绕了一圈又回到了这里。

一样的分析流程：

• XRT_FEATURE_OPENXR:ON
• XRT_HAVE_SDL2:OFF
• XRT_FEATURE_SERVICE:OFF

# Copyright 2019-2020, Collabora, Ltd.
# SPDX-License-Identifier: BSL-1.0

######
# This is where we collect all of the pieces from the different parts of
# the source tree and build a complete driver or integration part.

add_subdirectory(common)

if(XRT_FEATURE_OPENXR)
	add_subdirectory(openxr)
endif()

add_subdirectory(cli)

common

monado/src/xrt/targets/common/CMakeLists.txt

继续分析

• XRT_BUILD_DRIVER_ARDUINO
• XRT_BUILD_DRIVER_DAYDREAM
• XRT_BUILD_DRIVER_DEPTHAI
• XRT_BUILD_DRIVER_QWERTY
• XRT_BUILD_DRIVER_HDK
• XRT_BUILD_DRIVER_HYDRA
• XRT_BUILD_DRIVER_NS
• XRT_BUILD_DRIVER_ULV2
• XRT_BUILD_DRIVER_OHMD
• XRT_BUILD_DRIVER_PSMV
• XRT_BUILD_DRIVER_PSVR
• XRT_BUILD_DRIVER_REALSENSE
• XRT_BUILD_DRIVER_VIVE
• XRT_BUILD_DRIVER_VF
• XRT_BUILD_DRIVER_HANDTRACKING
• XRT_BUILD_DRIVER_SURVIVE
• XRT_BUILD_DRIVER_ILLIXR
• XRT_BUILD_DRIVER_EUROC

整个CMakeLists就会被简化为：

# Copyright 2019-2021, Collabora, Ltd.
# SPDX-License-Identifier: BSL-1.0

####
# Lists
#

add_library(target_lists STATIC target_lists.c)
target_link_libraries(
	target_lists
	PRIVATE
		xrt-interfaces
		aux_util # TODO Remove this after removing #include "util/u_time.h" from xrt_defines.h
		drv_includes
	)
target_include_directories(target_lists PUBLIC ${CMAKE_CURRENT_SOURCE_DIR})

if(XRT_BUILD_DRIVER_DUMMY)
	target_link_libraries(target_lists PRIVATE drv_dummy)
endif()

if(XRT_BUILD_DRIVER_REMOTE)
	target_link_libraries(target_lists PRIVATE drv_remote)
endif()

if(XRT_HAVE_V4L2)
	target_link_libraries(target_lists PRIVATE drv_v4l2)
endif()

if(XRT_BUILD_DRIVER_ANDROID)
	target_link_libraries(target_lists PRIVATE drv_android)
endif()

if(XRT_BUILD_DRIVER_WMR)
	target_link_libraries(target_lists PRIVATE drv_wmr)
endif()

####
# Instance
#
if(XRT_FEATURE_COMPOSITOR_MAIN)
	add_library(target_instance STATIC target_instance.c)
	target_link_libraries(
		target_instance
		PRIVATE
			xrt-interfaces
			aux_util
			st_prober
			target_lists
			comp_main
			drv_includes
		)
	target_include_directories(target_instance PUBLIC ${CMAKE_CURRENT_SOURCE_DIR})
endif()

####
# Instance without Compositor
#

add_library(target_instance_no_comp STATIC target_instance_no_comp.c)
target_link_libraries(
	target_instance_no_comp
	PRIVATE
		xrt-interfaces
		aux_util
		st_prober
		target_lists
		drv_includes
	)
target_include_directories(target_instance_no_comp PUBLIC ${CMAKE_CURRENT_SOURCE_DIR})

最终这边会出现的target为：

• target_lists
• target_instance
• target_instance_no_comp

openxr

monado/src/xrt/targets/openxr/CMakeLists.txt，同样的，我们把预先定义的宏都展开

• XRT_FEATURE_SERVICE：OFF，因为使用的是inProcess模式
• MSVC：OFF，因为没有使用microsoft visual c++编译器
• RUNTIME_BARE_SUFFIX = monado，RUNTIME_PREFIX = ""，因此RUNTIME_TARGET = openxr_monado
• XRT_HAVE_OPENGL:OFF
• CMAKE_SYSTEM_NAME:Android

# Copyright 2019, Collabora, Ltd.
# SPDX-License-Identifier: BSL-1.0

######
# Create a loadable OpenXR driver.

set(RUNTIME_BARE_SUFFIX monado)
set(RUNTIME_SUFFIX _${RUNTIME_BARE_SUFFIX})

set(RUNTIME_TARGET
    ${RUNTIME_PREFIX}openxr${RUNTIME_SUFFIX}
    CACHE INTERNAL "" FORCE
	)

# OpenXR 1.0
set(XR_API_MAJOR "1")

add_library(${RUNTIME_TARGET} MODULE target.c libopenxr.def)

# Note: Order may matter in these lists!
target_link_libraries(${RUNTIME_TARGET} PUBLIC aux_vk aux_os aux_util aux_math)

if(XRT_FEATURE_SERVICE)
	target_link_libraries(${RUNTIME_TARGET} PUBLIC st_oxr ipc_client comp_client)
else()
	target_link_libraries(
		${RUNTIME_TARGET}
		PUBLIC
			st_oxr
			st_prober
			target_lists
			target_instance
			comp_main
			comp_client
		)
endif()

if(NOT MSVC)
	# Force the main "negotiate" symbol's inclusion
	# and use a version script to ensure that's the only one we expose.
	set_property(
		TARGET ${RUNTIME_TARGET}
		APPEND_STRING
		PROPERTY
			LINK_FLAGS
			"-u xrNegotiateLoaderRuntimeInterface -Wl,--version-script=${CMAKE_CURRENT_SOURCE_DIR}/libopenxr.version"
		)
	# Re-link if the version script changes.
	set_property(
		TARGET ${RUNTIME_TARGET}
		APPEND
		PROPERTY LINK_DEPENDS "${CMAKE_CURRENT_SOURCE_DIR}/libopenxr.version"
		)
endif()

# Install the runtime itself
install(
	TARGETS ${RUNTIME_TARGET} #
	LIBRARY DESTINATION ${CMAKE_INSTALL_LIBDIR} #
	ARCHIVE DESTINATION ${CMAKE_INSTALL_LIBDIR} #
	RUNTIME DESTINATION ${CMAKE_INSTALL_BINDIR}
	)

###
# Generate runtime manifest with absolute path to runtime intended for development without installing
set(MANIFEST_INPUT ${CMAKE_CURRENT_SOURCE_DIR}/openxr_monado.in.json)
set(runtime_path $<TARGET_FILE:${RUNTIME_TARGET}>)

# Need this step because file(GENERATE) only evaluates generator expressions, and not what configure_file does.
configure_file(${MANIFEST_INPUT} ${CMAKE_CURRENT_BINARY_DIR}/intermediate_manifest.json)

if(CMAKE_VERSION VERSION_LESS 3.9)
	# best guess
	if(CMAKE_BUILD_TYPE AND NOT CMAKE_CONFIGURATION_TYPES)
		set(IS_MULTI_CONFIG FALSE)
	else()
		set(IS_MULTI_CONFIG TRUE)
	endif()
else()
	# 3.9+ have a global property with the truth
	get_property(IS_MULTI_CONFIG GLOBAL PROPERTY GENERATOR_IS_MULTI_CONFIG)
endif()

if(IS_MULTI_CONFIG)
	set(DEV_MANIFEST_OUTPUT "${CMAKE_BINARY_DIR}/$<CONFIG>/${RUNTIME_TARGET}-dev.json")
else()
	set(DEV_MANIFEST_OUTPUT "${CMAKE_BINARY_DIR}/${RUNTIME_TARGET}-dev.json")
endif()

file(
	GENERATE
	OUTPUT "${DEV_MANIFEST_OUTPUT}"
	INPUT ${CMAKE_CURRENT_BINARY_DIR}/intermediate_manifest.json
	)

###
# Prepare the installable manifest: will be generated completely at install time,
# by a script we generate now.
if(CMAKE_SYSTEM_NAME STREQUAL "Linux")
	set(MANIFEST_RELATIVE_DIR share/openxr/${XR_API_MAJOR}/)
	if(XRT_OPENXR_INSTALL_ACTIVE_RUNTIME)
		configure_file(
			active_runtime.cmake ${CMAKE_CURRENT_BINARY_DIR}/active_runtime.cmake @ONLY
			)
		install(SCRIPT ${CMAKE_CURRENT_BINARY_DIR}/active_runtime.cmake)
	endif()
elseif(CMAKE_SYSTEM_NAME STREQUAL "Windows")
	# TODO: install target on windows just needs to know where to install manifest
	set(MANIFEST_RELATIVE_DIR)
endif()

# If we know where to install the manifest, we can set it up to be installed.
if(MANIFEST_RELATIVE_DIR)
	set(RUNTIME_RELATIVE_DIR ${CMAKE_INSTALL_LIBDIR})
	set(RUNTIME_FILENAME
	    ${CMAKE_SHARED_MODULE_PREFIX}${RUNTIME_TARGET}${CMAKE_SHARED_MODULE_SUFFIX}
		)
	configure_file(make_manifest.cmake ${CMAKE_CURRENT_BINARY_DIR}/make_manifest.cmake @ONLY)
	install(SCRIPT ${CMAKE_CURRENT_BINARY_DIR}/make_manifest.cmake)
endif()

###
# Inelegant but effective SDL2-based debug GUI
add_library(oxr_sdl2 STATIC oxr_sdl2_hack.c)
target_link_libraries(oxr_sdl2 PRIVATE aux_util)
if(XRT_HAVE_OPENGL)
	target_link_libraries(oxr_sdl2 PUBLIC aux_ogl)
endif()
if(XRT_HAVE_SDL2)
	target_link_libraries(oxr_sdl2 PRIVATE st_gui xrt-external-imgui-sdl2 ${SDL2_LIBRARIES})

	if(XRT_BUILD_DRIVER_QWERTY)
		target_link_libraries(oxr_sdl2 PRIVATE drv_qwerty drv_qwerty_includes)
	endif()
endif()
target_link_libraries(${RUNTIME_TARGET} PRIVATE oxr_sdl2)

• 切记：add_library(${RUNTIME_TARGET} MODULE target.c libopenxr.def)

• targets/openxr定义了一个openxr_monado的target，这个部分跟build.gradle的部分联系了起来，在android gradle项目中的最终target就是openxr_monado

  productFlavors {
      inProcess {
          dimension 'deployment'
          applicationIdSuffix '.in_process'
          externalNativeBuild.cmake.arguments += "-DXRT_FEATURE_SERVICE=OFF"
          externalNativeBuild.cmake.targets "openxr_monado"

          resValue "string", "app_name", "Monado XR"
      }

cil

monado/src/xrt/targets/cil/CMakeLists.txt

cil = Common Intermediate Language，这个模块可以认为是一种用来调试的辅助工具，类似android中am，wm命令

# Copyright 2019-2021, Collabora, Ltd.
# SPDX-License-Identifier: BSL-1.0

######
# Create a cli interface for Monado.

add_executable(
	cli
	cli_cmd_lighthouse.c
	cli_cmd_probe.c
	cli_cmd_test.c
	cli_common.h
	cli_main.c
	)
add_sanitizers(cli)

if(NOT WIN32)
	# No getline on Windows, so until we have a portable impl
	target_sources(cli PRIVATE cli_cmd_calibrate.c)
endif()

set_target_properties(cli PROPERTIES OUTPUT_NAME monado-cli PREFIX "")

target_link_libraries(cli PRIVATE aux_os aux_util aux_math target_instance_no_comp)

install(TARGETS cli RUNTIME DESTINATION ${CMAKE_INSTALL_BINDIR})

ipc

monado/src/xrt/ipc/CMakeLists.txt，ipc的部分顾名思义，应该是进程间通讯会用到的模块，理论上来说应该是outProcess下会用到的部分。

• XRT_HAVE_SYSTEMD:OFF
• RT_LIBRARY:OFF

# Copyright 2020-2021, Collabora, Ltd.
# SPDX-License-Identifier: BSL-1.0

###
# Generator

foreach(
	fn
	ipc_protocol_generated.h
	ipc_client_generated.h
	ipc_client_generated.c
	ipc_server_generated.h
	ipc_server_generated.c
	)
	add_custom_command(
		OUTPUT "${CMAKE_CURRENT_BINARY_DIR}/${fn}"
		COMMAND
			${PYTHON_EXECUTABLE} ${CMAKE_CURRENT_SOURCE_DIR}/shared/proto.py
			${CMAKE_CURRENT_SOURCE_DIR}/shared/proto.json
			"${CMAKE_CURRENT_BINARY_DIR}/${fn}"
		VERBATIM
		DEPENDS
			${CMAKE_CURRENT_SOURCE_DIR}/shared/proto.py
			${CMAKE_CURRENT_SOURCE_DIR}/shared/ipcproto/common.py
			${CMAKE_CURRENT_SOURCE_DIR}/shared/proto.json
		COMMENT "Generating ${fn} from protocol JSON description"
		)
endforeach()

set(IPC_COMMON_SOURCES
    ${CMAKE_CURRENT_BINARY_DIR}/ipc_protocol_generated.h
    shared/ipc_shmem.c
    shared/ipc_shmem.h
    shared/ipc_utils.c
    shared/ipc_utils.h
	)

add_library(ipc_shared STATIC ${IPC_COMMON_SOURCES})
target_include_directories(
	ipc_shared PUBLIC ${CMAKE_CURRENT_SOURCE_DIR} ${CMAKE_CURRENT_BINARY_DIR}
	)
target_link_libraries(ipc_shared PRIVATE aux_util)

if(RT_LIBRARY)
	target_link_libraries(ipc_shared PUBLIC ${RT_LIBRARY})
endif()

###
# Client

add_library(
	ipc_client STATIC
	${CMAKE_CURRENT_BINARY_DIR}/ipc_client_generated.c
	${CMAKE_CURRENT_BINARY_DIR}/ipc_client_generated.h
	client/ipc_client.h
	client/ipc_client_compositor.c
	client/ipc_client_device.c
	client/ipc_client_hmd.c
	client/ipc_client_instance.c
	)
target_include_directories(
	ipc_client PUBLIC ${CMAKE_CURRENT_SOURCE_DIR} ${CMAKE_CURRENT_BINARY_DIR}
	)
target_link_libraries(ipc_client PRIVATE aux_util ipc_shared)

###
# Server

add_library(
	ipc_server STATIC
	${CMAKE_CURRENT_BINARY_DIR}/ipc_server_generated.c
	${CMAKE_CURRENT_BINARY_DIR}/ipc_server_generated.h
	server/ipc_server.h
	server/ipc_server_handler.c
	server/ipc_server_per_client_thread.c
	server/ipc_server_process.c
	)
target_include_directories(
	ipc_server
	PUBLIC ${CMAKE_CURRENT_SOURCE_DIR}
	PRIVATE ${CMAKE_CURRENT_BINARY_DIR}
	)
target_link_libraries(ipc_server PRIVATE aux_util ipc_shared)

if(XRT_HAVE_SYSTEMD)
	target_include_directories(ipc_server PRIVATE ${SYSTEMD_INCLUDE_DIRS})
	target_link_libraries(ipc_server PRIVATE ${SYSTEMD_LIBRARIES})
endif()

if(ANDROID)
	add_library(
		ipc_android STATIC
		android/ipc_client_android.cpp
		android/ipc_client_android.h
		android/org.freedesktop.monado.ipc.cpp
		android/org.freedesktop.monado.ipc.hpp
		android/org.freedesktop.monado.ipc.impl.hpp
		)
	target_link_libraries(
		ipc_android PUBLIC xrt-external-jni-wrap xrt-external-jnipp aux_android
		)
	target_sources(
		ipc_server PRIVATE ${CMAKE_CURRENT_SOURCE_DIR}/server/ipc_server_mainloop_android.c
		)
	target_link_libraries(
		ipc_shared
		PUBLIC ${ANDROID_LIBRARY}
		PRIVATE aux_android ipc_android
		)
elseif(XRT_HAVE_LINUX)
	target_sources(
		ipc_server PRIVATE ${CMAKE_CURRENT_SOURCE_DIR}/server/ipc_server_mainloop_linux.c
		)
endif()

这边所有的target为：

• ipc_shared
• ipc_client
• ipc_server
• ipc_android

Target link

根据之前对整个CMakeLists的阅读，我们可以厘清整个targe的link链，但是我们需要的link是哪个？这个就需要回到build.gradle里去了。

还记得monado/src/xrt/targets/openxr_android/build.gradle吗？其中对于inProcess和outProcess的

// Copyright 2020, Collabora, Ltd.
// SPDX-License-Identifier: BSL-1.0
plugins {
    id 'com.android.application'
	......
}
......
android {
    ......

    defaultConfig {
        applicationId 'org.freedesktop.monado.openxr_runtime'
        ......
    }
    ......
    externalNativeBuild {
        cmake {
            path "${rootDir}/CMakeLists.txt"
        }
    }
    ......
    flavorDimensions 'deployment'
    productFlavors {
        inProcess {
            dimension 'deployment'
            applicationIdSuffix '.in_process'
            externalNativeBuild.cmake.arguments += "-DXRT_FEATURE_SERVICE=OFF"
            externalNativeBuild.cmake.targets "openxr_monado"

            resValue "string", "app_name", "Monado XR"
        }
        outOfProcess {
            dimension 'deployment'
            applicationIdSuffix '.out_of_process'
            externalNativeBuild.cmake.arguments += "-DXRT_FEATURE_SERVICE=ON"
            externalNativeBuild.cmake.targets "openxr_monado", "monado-service"

            resValue "string", "app_name", "Monado XR (Out-of-Proc)"
        }
    }
    ......
}
......
dependencies {
	......
}

target：openxr_monado

从build.gradle中针对inProcess的flavor，我们可以看到CMakeLists的交付件为：openxr_monado，我们根据之前的link list来反溯一下需要用到哪些模块。

首先是整个target的入口monado/src/xrt/targets/openxr/CMakeLists.txt：add_library(${RUNTIME_TARGET} MODULE target.c libopenxr.def)

add_library(openxr_monado MODULE target.c libopenxr.def)

其中的link依赖如下：

target_link_libraries(${RUNTIME_TARGET} PUBLIC aux_vk aux_os aux_util aux_math)

target_link_libraries(
	${RUNTIME_TARGET}
	PUBLIC
		st_oxr
		st_prober
		target_lists
		target_instance
		comp_main
		comp_client
	)

target_link_libraries(${RUNTIME_TARGET} PRIVATE oxr_sdl2)

• 因此target:openxr_monado依赖路径：aux_vk，aux_os，aux_util，aux_math，st_oxr，st_prober，target_lists，target_instance，comp_main，comp_client，oxr_sdl2

    graph TD
  openxr_monado --> st_oxr
  openxr_monado --> st_prober
  openxr_monado --> target_lists
  openxr_monado --> target_instance
  openxr_monado --> comp_main
  openxr_monado --> comp_client
  openxr_monado --> aux_vk
  openxr_monado --> aux_os
  openxr_monado --> aux_util
  openxr_monado --> aux_math

依赖关系

我们挨个展开来看一下每个库的依赖关系

aux_vk

aux_vk：aux_os,aux_util,Vulkan::Vulkan,aux_android,android

graph TD
aux_vk --> aux_os
aux_vk --> aux_util
aux_vk --> Vulkan::Vulkan
aux_vk --> aux_android
aux_vk --> android

aux_os

aux_os：aux-includes，xrt-pthreads

graph TD
aux_os --> aux-includes
aux_os --> xrt-pthreads

aux_util

aux_util：aux-includes,xrt-pthreads,aux_generated_bindings,aux_math,${JPEG_LIBRARIES},xrt-external-cjson,${ANDROID_LOG_LIBRARY}

graph TD
aux_util --> aux-includes
aux_util --> xrt-pthreads
aux_util --> aux_generated_bindings
aux_util --> aux_math
aux_util --> JPEG_LIBRARIES
aux_util --> xrt-external-cjson
aux_util --> ANDROID_LOG_LIBRARY

aux_math

aux_math：aux-includes,aux_util

graph TD
aux_math --> aux-includes
aux_math --> aux_util

st_oxr

st_oxr：Vulkan::Vulkan,aux_ogl,aux_android

graph TD
st_oxr --> Vulkan::Vulkan
st_oxr --> aux_ogl
st_oxr --> aux_android

st_prober

st_prober：xrt-interfaces,drv_remote,drv_includes,drv_multi,aux_util,aux_os,aux_tracking

graph TD
st_prober --> xrt-interfaces
st_prober --> drv_remote
st_prober --> drv_includes
st_prober --> drv_multi
st_prober --> aux_util
st_prober --> aux_os
st_prober --> aux_tracking

target_lists

target_lists：xrt-interfaces,aux_util,drv_includes,drv_dummy,drv_remote,drv_android,drv_multi,drv_wmr

graph TD
target_lists --> xrt-interfaces
target_lists --> aux_util
target_lists --> drv_includes
target_lists --> drv_dummy
target_lists --> drv_remote
target_lists --> drv_android
target_lists --> drv_multi
target_lists --> drv_wmr

target_instance

target_instance：xrt-interfaces,aux_util,st_prober,target_lists,comp_main,drv_includes

graph TD
target_instance --> xrt-interfaces
target_instance --> aux_util
target_instance --> st_prober
target_instance --> target_lists
target_instance --> comp_main
target_instance --> drv_includes

comp_main

comp_main：xrt-interfaces,aux_util,aux_os,aux_vk,comp_util,comp_render,aux_ogl,aux_android,comp_multi

graph TD
comp_main --> xrt-interfaces
comp_main --> aux_util
comp_main --> aux_os
comp_main --> aux_vk
comp_main --> comp_util
comp_main --> comp_render
comp_main --> aux_ogl
comp_main --> aux_android
comp_main --> comp_multi

comp_client

comp_client：xrt-interfaces,aux_util,aux_vk,aux_ogl

graph TD
comp_client --> xrt-interfaces
comp_client --> aux_util
comp_client --> aux_vk
comp_client --> aux_ogl

oxr_sdl2

oxr_sdl2：aux_util,aux_ogl

graph TD
oxr_sdl2 --> aux_util
oxr_sdl2 --> aux_ogl

二级依赖

aux_generated_bindings

aux_generated_bindings：xrt-interfaces,aux_util

graph TD
aux_generated_bindings --> xrt-interfaces
aux_generated_bindings --> aux_util

comp_util

comp_util：xrt-interfaces,aux_util,aux_os,aux_vk

graph TD
comp_util --> xrt-interfaces
comp_util --> aux_util
comp_util --> aux_os
comp_util --> aux_vk

aux_ogl

aux_ogl：aux-includes,xrt-external-glad,EGL::EGL

graph TD
aux_ogl --> aux-includes
aux_ogl --> xrt-external-glad
aux_ogl --> EGL::EGL

aux_android

aux_android：aux_util,${ANDROID_LIBRARY},${ANDROID_LOG_LIBRARY},xrt-external-jni-wrap,xrt-external-jnipp,android_app_glue

graph TD
aux_android --> aux_util
aux_android --> ANDROID_LIBRARY
aux_android --> ANDROID_LOG_LIBRARY
aux_android --> xrt-external-jni-wrap
aux_android --> xrt-external-jnipp
aux_android --> android_app_glue

comp_multi

comp_multi：xrt-interfaces,aux_util,aux_os

graph TD
comp_multi --> xrt-interfaces
comp_multi --> aux_util
comp_multi --> aux_os

aux_tracking

aux_tracking：aux-includes,xrt-external-cjson,aux_math,aux_util,xrt-external-flexkalman,xrt-external-hungarian

graph TD
aux_tracking --> aux-includes
aux_tracking --> xrt-external-cjson
aux_tracking --> aux_math
aux_tracking --> aux_util
aux_tracking --> xrt-external-flexkalman
aux_tracking --> xrt-external-hungarian

drv_multi

drv_multi：xrt-interfaces,aux_util

graph TD
drv_multi --> xrt-interfaces
drv_multi --> aux_util

drv_remote

drv_remote：xrt-interfaces,aux_util

graph TD
drv_remote --> xrt-interfaces
drv_remote --> aux_util

drv_android

drv_android：xrt-interfaces,aux_util,aux_os,aux_android,${ANDROID_LIBRARY}

graph TD
drv_android --> xrt-interfaces
drv_android --> aux_util
drv_android --> aux_os
drv_android --> aux_android
drv_android --> ANDROID_LIBRARY

drv_wmr

drv_wmr：xrt-interfaces,aux_util,aux_math,aux_tracking,xrt-external-cjson

graph TD
drv_wmr --> xrt-interfaces
drv_wmr --> aux_util
drv_wmr --> aux_math
drv_wmr --> aux_tracking
drv_wmr --> xrt-external-cjson

comp_render

comp_render：aux_util,aux_os,aux_vk

graph TD
comp_render --> aux_util
comp_render --> aux_os
comp_render --> aux_vk

整体结构

这个时候通过展开这样的一个拓扑关系树，我们就可以得到整个openxr_monado的编译依赖了。

flowchart LR

openxr_monado --> st_oxr
openxr_monado --> st_prober
openxr_monado --> target_lists
openxr_monado --> target_instance
openxr_monado --> comp_main
openxr_monado --> comp_client
openxr_monado --> aux_vk
openxr_monado --> aux_os
openxr_monado --> aux_util
openxr_monado --> aux_math
aux_vk --> aux_os
aux_vk --> aux_util
aux_vk --> Vulkan::Vulkan
aux_vk --> aux_android
aux_vk --> android
aux_os --> aux-includes
aux_os --> xrt-pthreads
aux_util --> aux-includes
aux_util --> xrt-pthreads
aux_util --> aux_generated_bindings
aux_util --> aux_math
aux_util --> JPEG_LIBRARIES
aux_util --> xrt-external-cjson
aux_util --> ANDROID_LOG_LIBRARY
aux_math --> aux-includes
aux_math --> aux_util
st_oxr --> Vulkan::Vulkan
st_oxr --> aux_ogl
st_oxr --> aux_android
st_prober --> xrt-interfaces
st_prober --> drv_remote
st_prober --> drv_includes
st_prober --> drv_multi
st_prober --> aux_util
st_prober --> aux_os
st_prober --> aux_tracking
target_lists --> xrt-interfaces
target_lists --> aux_util
target_lists --> drv_includes
target_lists --> drv_dummy
target_lists --> drv_remote
target_lists --> drv_android
target_lists --> drv_multi
target_lists --> drv_wmr
target_instance --> xrt-interfaces
target_instance --> aux_util
target_instance --> st_prober
target_instance --> target_lists
target_instance --> comp_main
target_instance --> drv_includes
comp_main --> xrt-interfaces
comp_main --> aux_util
comp_main --> aux_os
comp_main --> aux_vk
comp_main --> comp_util
comp_main --> comp_render
comp_main --> aux_ogl
comp_main --> aux_android
comp_main --> comp_multi
comp_client --> xrt-interfaces
comp_client --> aux_util
comp_client --> aux_vk
comp_client --> aux_ogl
oxr_sdl2 --> aux_util
oxr_sdl2 --> aux_ogl
aux_generated_bindings --> xrt-interfaces
aux_generated_bindings --> aux_util
comp_util --> xrt-interfaces
comp_util --> aux_util
comp_util --> aux_os
comp_util --> aux_vk
aux_ogl --> aux-includes
aux_ogl --> xrt-external-glad
aux_ogl --> EGL::EGL
aux_android --> aux_util
aux_android --> ANDROID_LIBRARY
aux_android --> ANDROID_LOG_LIBRARY
aux_android --> xrt-external-jni-wrap
aux_android --> xrt-external-jnipp
aux_android --> android_app_glue
comp_multi --> xrt-interfaces
comp_multi --> aux_util
comp_multi --> aux_os
aux_tracking --> aux-includes
aux_tracking --> xrt-external-cjson
aux_tracking --> aux_math
aux_tracking --> aux_util
aux_tracking --> xrt-external-flexkalman
aux_tracking --> xrt-external-hungarian
drv_multi --> xrt-interfaces
drv_multi --> aux_util
drv_remote --> xrt-interfaces
drv_remote --> aux_util
drv_android --> xrt-interfaces
drv_android --> aux_util
drv_android --> aux_os
drv_android --> aux_android
drv_android --> ANDROID_LIBRARY
drv_wmr --> xrt-interfaces
drv_wmr --> aux_util
drv_wmr --> aux_math
drv_wmr --> aux_tracking
drv_wmr --> xrt-external-cjson
comp_render --> aux_util
comp_render --> aux_os
comp_render --> aux_vk

总结

• 整个Android相关的工程编译是从monado/src/xrt/targets/openxr_android/build.gralde开始的

• Android工程在Native端的build target：openxr_monado，交付件：libopenxr_monado.so，该target定义在：monado/src/xrt/targets/openxr/CMakeLists.txt

• 编译过程中某些config开关可以直接去查看CMakeCache文件，以arm64-v8a为例，中间文件在如下地址：

  • monado/src/xrt/targets/openxr_android/.cxx/cmake/inProcessDebug/arm64-v8a/CMakeCache.txt

• 跟graphic相关的库有aux_vk，aux_ogl，这一部分的定义在：monado/src/xrt/auxiliary/CMakeLists.txt

  • 代码部分在：monado/src/xrt/auxiliary/ogl，monado/src/xrt/auxiliary/vk

• 跟android相关部分aux_android，这一部分的定义在：monado/src/xrt/auxiliary/CMakeLists.txt

  • 代码的部分在：monado/src/xrt/auxiliary/android

• 支持的设备是在target_lists，这个部分需要再去看代码确认一下仅仅是驱动，还是类似hal的中间层

  • 其中drv_android由monado/src/xrt/drivers/android/下的文件编译而成，其中包含android_sensor.c，主要是做了g sensor数据的获取，以及3dof算法

• comp_xxx的部分应该是重中之中，其中牵扯到不少都是VR核心的渲染部分？这个需要后续深入去看

  • compositor的流程是什么，大致的框架
  • comp_client，comp_main,comp_multi之间是什么关系

• 最终是关于opengles和vulkan的，这个部分的重点应该是落在实现上，而不是应用上，所以后续需要理解的是各个命令的具体实现，GPU到底做了什么。
