Android N Split Window

发表于   |   分类于   |   1,809 字   |   9 分钟   |

前言

Android N引入了分屏的概念，有两个入口：

  • 单击多任务按键，通过长按拖动多任务界面中的task到顶部dock区域后释放。
  • 进入到某个应用（非Launcher）后，长按多任务键

对应的，另外一个区域的应用，则是通过点击多任务中的图标来启动。

Split Window First

Dock

从拖动入手，可以接受拖动目标的接口为，DropTarget，对应的，每部手机 or Set会因为设备不同而做不同的配置，对应的dock热区也会不同，以模拟器Nexus 5为例，dock的热区在顶部：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
TaskStack.java
public static class DockState implements DropTarget {
        ......
        public static final DockState TOP = new DockState(DOCKED_TOP,
                DOCKED_STACK_CREATE_MODE_TOP_OR_LEFT, DOCK_AREA_ALPHA, 0, HORIZONTAL,
                new RectF(0, 0, 1, 0.125f), new RectF(0, 0, 1, 0.125f),
                new RectF(0, 0, 1, 0.5f));
        ......
        @Override
        public boolean acceptsDrop(int x, int y, int width, int height, boolean isCurrentTarget) {
            return isCurrentTarget
                    ? areaContainsPoint(expandedTouchDockArea, width, height, x, y)
                    : areaContainsPoint(touchArea, width, height, x, y);
        }
        ......
        /**
         * @param createMode used to pass to ActivityManager to dock the task
         * @param touchArea the area in which touch will initiate this dock state
         * @param dockArea the visible dock area
         * @param expandedTouchDockArea the areain which touch will continue to dock after entering
         *                              the initial touch area.  This is also the new dock area to
         *                              draw.
         */
        DockState(int dockSide, int createMode, int dockAreaAlpha, int hintTextAlpha,
                  @TextOrientation int hintTextOrientation, RectF touchArea, RectF dockArea,
                  RectF expandedTouchDockArea) {
            this.dockSide = dockSide;
            this.createMode = createMode;
            this.viewState = new ViewState(dockAreaAlpha, hintTextAlpha, hintTextOrientation,
                    R.string.recents_drag_hint_message);
            this.dockArea = dockArea;
            this.touchArea = touchArea;
            this.expandedTouchDockArea = expandedTouchDockArea;
        }
		......
    }

What is a Dock ?

对于这里的定义，dock为Top。

1
2
3
4
public static final DockState TOP = new DockState(DOCKED_TOP,
        DOCKED_STACK_CREATE_MODE_TOP_OR_LEFT, DOCK_AREA_ALPHA, 0, HORIZONTAL,
        new RectF(0, 0, 1, 0.125f), new RectF(0, 0, 1, 0.125f),
        new RectF(0, 0, 1, 0.5f));

而对于Top是如何被作为mDropTarget的，可以参考

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
RecentsViewTouchHandler.java
public final void onBusEvent(DragStartEvent event){
        ......
				TaskStack.DockState[] dockStates = getDockStatesForCurrentOrientation();
                for (TaskStack.DockState dockState : dockStates) {
                    registerDropTargetForCurrentDrag(dockState);
                    dockState.update(mRv.getContext());
                    mVisibleDockStates.add(dockState);
        ......
}
/**
 * Returns the preferred dock states for the current orientation.
 */
public TaskStack.DockState[] getDockStatesForCurrentOrientation() {
    boolean isLandscape = mRv.getResources().getConfiguration().orientation ==
            Configuration.ORIENTATION_LANDSCAPE;
    RecentsConfiguration config = Recents.getConfiguration();
    TaskStack.DockState[] dockStates = isLandscape ?
            (config.isLargeScreen ? DockRegion.TABLET_LANDSCAPE : DockRegion.PHONE_LANDSCAPE) :
            (config.isLargeScreen ? DockRegion.TABLET_PORTRAIT : DockRegion.PHONE_PORTRAIT);
    return dockStates;
}
public static TaskStack.DockState[] PHONE_LANDSCAPE = {
        // We only allow docking to the left for now on small devices
        TaskStack.DockState.LEFT
};
public static TaskStack.DockState[] PHONE_PORTRAIT = {
        // We only allow docking to the top for now on small devices
        TaskStack.DockState.TOP
};

因此，当整个拖拽的动作开始时，会触发onBusEvent(DragStartEvent event)，从而准备去注册DropTarget，而这里DockStates的来源是：getDockStatesForCurrentOrientation();，在这个函数中我们会去判定当前set（手机or平板）的各种状态，从而给出不同位置的Dock。而在这里我们为了简化问题，就用Phone | Portrait为例。
因此：DockRegion.PHONE_PORTRAIT=TaskStack.DockState.TOP
最后，TOP与Phone Portrait的关系就这样建立起来了。

How to start a split Activity ?

上文分析了对于Dock为什么会出现在Top，以及Top & DropTarget的关系，所以当我们触发了Drag & Drop的动作以后，自然就会发生分屏这样一个行为了。 我们先看一张函数调用图来快速定位：

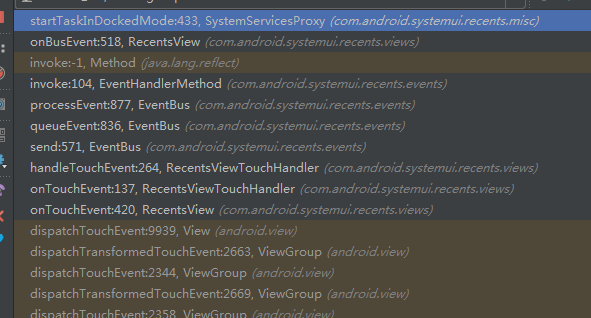

从函数调用栈上，我们了解到整个touch的派发是从PhoneWindow下来的，这一路是基于Frameworks的事件流，我们来看看RecentsViewTouchHandler.java中的handleTouchEvent

1
2
3
4
5
6
7
8
9
10
11
12
13
14
private void handleTouchEvent(MotionEvent ev) {
        ......
            case MotionEvent.ACTION_UP:
            case MotionEvent.ACTION_CANCEL: {
                if (mDragRequested) {
                    boolean cancelled = action == MotionEvent.ACTION_CANCEL;
                    if (cancelled) {
                        EventBus.getDefault().send(new DragDropTargetChangedEvent(mDragTask, null));
                    }
                    EventBus.getDefault().send(new DragEndEvent(mDragTask, mTaskView,
                            !cancelled ? mLastDropTarget : null));
                    break;
        ......
    }

搭上EventBus一路向北

我们来到RecentView.java::onBusEvent(final DragEndEvent event)

1
2
3
4
5
public final void onBusEvent(final DragEndEvent event) {
		......
            if (ssp.startTaskInDockedMode(event.task.key.id, dockState.createMode)) {
		......
    }

ssp是SystemServicesProxy的实例，而对应的入参：event.task.key.id是需要启动的task id，dockState.createMode则是启动的mode,这个在创建DockState的时候已经确定：

1
2
3
4
5
6
7
8
public static final DockState LEFT = new DockState(DOCKED_LEFT,
        DOCKED_STACK_CREATE_MODE_TOP_OR_LEFT, ......);
public static final DockState TOP = new DockState(DOCKED_TOP,
        DOCKED_STACK_CREATE_MODE_TOP_OR_LEFT, ......);
public static final DockState RIGHT = new DockState(DOCKED_RIGHT,
        DOCKED_STACK_CREATE_MODE_BOTTOM_OR_RIGHT, ......);
public static final DockState BOTTOM = new DockState(DOCKED_BOTTOM,
        DOCKED_STACK_CREATE_MODE_BOTTOM_OR_RIGHT,......);

createMode中的的两个参数，很不幸，都是属于ActivityManager.java中的hide元素：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
/**
 * Input parameter to {@link android.app.IActivityManager#moveTaskToDockedStack} which
 * specifies the position of the created docked stack at the top half of the screen if
 * in portrait mode or at the left half of the screen if in landscape mode.
 * @hide
 */
public static final int DOCKED_STACK_CREATE_MODE_TOP_OR_LEFT = 0;
/**
 * Input parameter to {@link android.app.IActivityManager#moveTaskToDockedStack} which
 * specifies the position of the created docked stack at the bottom half of the screen if
 * in portrait mode or at the right half of the screen if in landscape mode.
 * @hide
 */
public static final int DOCKED_STACK_CREATE_MODE_BOTTOM_OR_RIGHT = 1;

根据字面意义，我们也大概可以猜测到，当value = 0也即DOCKED_STACK_CREATE_MODE_TOP_OR_LEFT，其实就是把Activity启动时放在上面or左边（上左优先），当value = 1也即DOCKED_STACK_CREATE_MODE_BOTTOM_OR_RIGHT，其实就是右下优先。

StartTaskInDockedMode

紧接着我们来到真正的执行点，ssp.startTaskInDockedMode

1
2
3
4
5
6
7
8
public boolean startTaskInDockedMode(int taskId, int createMode) {
    	......
        final ActivityOptions options = ActivityOptions.makeBasic();
        options.setDockCreateMode(createMode);
        options.setLaunchStackId(DOCKED_STACK_ID);
        mIam.startActivityFromRecents(taskId, options.toBundle());
        ......
}

AMS，稍后开专门的文章来分析。

Split Window Second

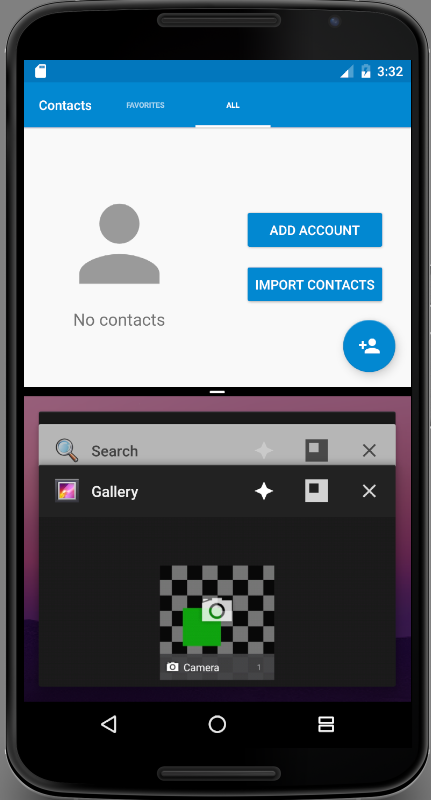

主屏应用分屏结束后，多任务列表的界面会存在与从屏中，此时屏幕差不多是这样显示的：

上面的部分我们认为是主屏，也就是之前分析的DockState,TOP状态下的左上优先。底下的部分我们认为是从屏，可以看到它仍旧是处于多任务列表的模式

注意请忽略掉星星的图标，原生的代码中并没有那一块东西，这里是我在调试UI的时候加入的

StartActivity to slave window

这边是单击事件来触发整个启动的flow，而从这个View的结构我们已经知道每一个task其实是一个TaskView，因此我们直接来到TaskView.java并注意看它的onClick函数：

1
2
3
4
5
6
7
  @Override
   public void onClick(final View v) {
      ......
      EventBus.getDefault().send(new LaunchTaskEvent(this, mTask, null, INVALID_STACK_ID,
              screenPinningRequested));
......
  }

在这里，我们需要看一下LaunchTaskEvent的构造参数：

1
2
3
4
5
6
7
8
LaunchTaskEvent(TaskView taskView, Task task, Rect targetTaskBounds, int targetTaskStack,
           boolean screenPinningRequested {
       this.taskView = taskView;
       this.task = task;
       this.targetTaskBounds = targetTaskBounds;
       this.targetTaskStack = targetTaskStack;
       this.screenPinningRequested = screenPinningRequested;
   }

其中：

taskView：this
task：mTask
targetTaskBounds：null
targetTaskStack：INVALID_STACK_ID
screenPinningRequested： screenPinningRequested

再次搭上EventBus一路向北

这次我们来到了RecentsView.java::onBusEvent

1
2
3
4
5
public final void onBusEvent(LaunchTaskEvent event) {
    mLastTaskLaunchedWasFreeform = event.task.isFreeformTask();
    mTransitionHelper.launchTaskFromRecents(mStack, event.task, mTaskStackView, event.taskView,
            event.screenPinningRequested, event.targetTaskBounds, event.targetTaskStack);
}

这里首先去检查了一下event.task的isFreefromTask，而这个FreeForm其实就是android N上最新加入的隐藏模式，也就是悬浮窗口，当然这里的悬浮窗与windows上的那种还有区别，它并不支持background activity，对于所有的FreeForm activity，他们都是基于一个统一的wallpaper，然后在其之上堆叠显示。

RecentsTransitionHelper.java的神秘面纱

1
2
3
4
5
6
7
8
public void launchTaskFromRecents(final TaskStack stack, @Nullable final Task task,
        final TaskStackView stackView, final TaskView taskView,
        final boolean screenPinningRequested, final Rect bounds, final int destinationStack) {
    		......
            startTaskActivity(stack, task, taskView, opts, transitionFuture,
                    animStartedListener);
			......
}

想想也是很愚蠢的，所以这边最终还是会进入到startTaskActivity的flow，继续trace：

1
2
3
4
5
6
7
8
9
10
RecentsTransitionHelper.java
private void startTaskActivity(TaskStack stack, Task task, @Nullable TaskView taskView,
            ActivityOptions opts, IAppTransitionAnimationSpecsFuture transitionFuture,
            final ActivityOptions.OnAnimationStartedListener animStartedListener) {
        SystemServicesProxy ssp = Recents.getSystemServices();
        if (ssp.startActivityFromRecents(mContext, task.key, task.title, opts)) {
            ......
		}
    }

Go on for waiting AMS：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
public boolean startActivityFromRecents(Context context, Task.TaskKey taskKey, String taskName,
        ActivityOptions options) {
    if (mIam != null) {
        try {
            if (taskKey.stackId == DOCKED_STACK_ID) {
                // We show non-visible docked tasks in Recents, but we always want to launch
                // them in the fullscreen stack.
                if (options == null) {
                    options = ActivityOptions.makeBasic();
                }
                options.setLaunchStackId(FULLSCREEN_WORKSPACE_STACK_ID);
            }
            mIam.startActivityFromRecents(
                    taskKey.id, options == null ? null : options.toBundle());
            return true;
        } catch (Exception e) {
            Log.e(TAG, context.getString(R.string.recents_launch_error_message, taskName), e);
        }
    }
    return false;
}

最后是走到了startActivityFromRecents

Another way to SplitWindow

关于长按多任务键，从已经启动的某个app中直接进入到

#写在最后
纵观整个flow，去掉system ui特有的属性，对于启动一个主屏的应用：

1
2
3
4
5
6
7
8
public boolean startTaskInDockedMode(int taskId, int createMode) {
    	......
        final ActivityOptions options = ActivityOptions.makeBasic();
        options.setDockCreateMode(createMode);
        options.setLaunchStackId(DOCKED_STACK_ID);
        mIam.startActivityFromRecents(taskId, options.toBundle());
        ......
}

其中需要设置的是createMode以及Task id。
而对于启动一个从屏的应用，则是

1
2
mIam.startActivityFromRecents(
        taskKey.id, options == null ? null : options.toBundle());
